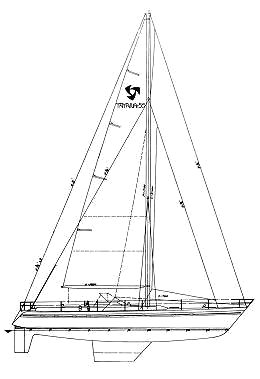

TAYANA 55
Built by Ta Yang Yacht Building Co. (TAIWAN)
• Designed by Peter Beeldsnijder
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1982
Last Built:
1991
Number Built:
65
Dimensions
Length Overall (LOA):
16.76 m
Length Waterline (LWL):
14.00 m
Beam:
4.90 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
21,954 kg
Ballast:
7,983 kg
Sail Plan
Foresail Area:
73.80 m²
Mainsail Area:
56.16 m²
Total Sail Area (calculated):
129.96 m²
Sail Area (reported):
129.97 m²
I (Fore Triangle Height):
21.43 m
J (Fore Triangle Base):
6.89 m
P (Mainsail Hoist):
19.29 m
E (Boom Length):
5.82 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Power:
120 HP
Fuel Capacity:
473 L
Water Capacity:
946 L
Performance Ratios
Hull Speed:
9.08 knots
SA/Displacement (Calculated):
16.58
SA/Displacement (Reported):
16.93
Ballast/Disp Ratio:
36.36%
Displacement/Length:
223.15
Comfort Ratio:
38.07
Capsize Screening:
1.77
S-Number:
2.44
Notes
keel/cb version:
