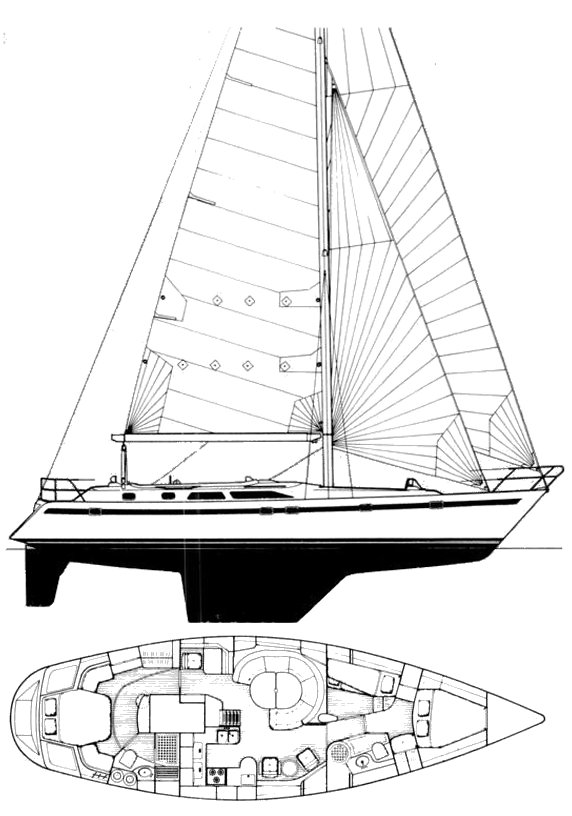

TASWELL 49
Built by Ta Shing Yacht Building (TAIWAN)
• Designed by Bill Dixon
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1989
Dimensions
Length Overall (LOA):
14.88 m
Length Waterline (LWL):
12.78 m
Beam:
4.57 m
Draft (Max):
2.06 m
Weight & Ballast
Displacement:
14,742 kg
Ballast:
5,897 kg
Sail Plan
Foresail Area:
54.13 m²
Mainsail Area:
44.73 m²
Total Sail Area (calculated):
98.86 m²
Sail Area (reported):
98.85 m²
I (Fore Triangle Height):
18.29 m
J (Fore Triangle Base):
5.92 m
P (Mainsail Hoist):
16.31 m
E (Boom Length):
5.49 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH-DTE
Engine Power:
77 HP
Fuel Capacity:
473 L
Water Capacity:
757 L
Performance Ratios
Hull Speed:
8.68 knots
SA/Displacement (Calculated):
16.44
SA/Displacement (Reported):
16.79
Ballast/Disp Ratio:
40.00%
Displacement/Length:
196.96
Comfort Ratio:
31.00
Capsize Screening:
1.88
S-Number:
2.72
Notes
Scheel Keel: 5.83'
