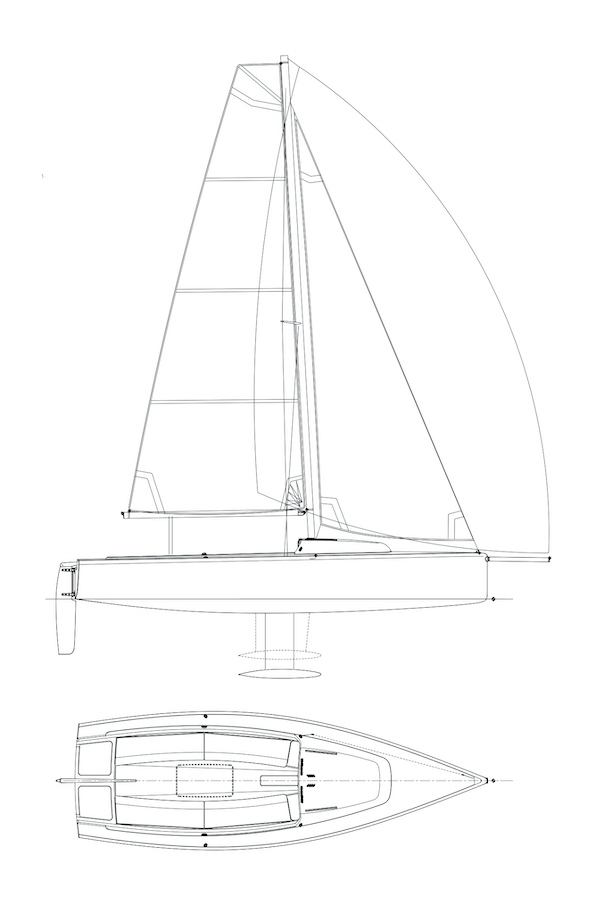

AIRA 22
Built by Aira Boats
• Designed by Simonis Voogd Design
General Information
Hull Type:
Fin w/bulb and transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2018
Dimensions
Length Overall (LOA):
6.50 m
Length Waterline (LWL):
6.45 m
Beam:
2.20 m
Draft (Max):
1.20 m
Draft (Min):
0.35 m
Max Height:
8.60 m
Weight & Ballast
Displacement:
700 kg
Ballast:
250 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
9.15 m²
Mainsail Area:
9.87 m²
Total Sail Area (calculated):
19.02 m²
Sail Area (reported):
22.00 m²
I (Fore Triangle Height):
7.10 m
J (Fore Triangle Base):
2.58 m
P (Mainsail Hoist):
7.05 m
E (Boom Length):
2.80 m
Engine & Systems
Engine Type:
Electric
Performance Ratios
Hull Speed:
6.16 knots
SA/Displacement (Calculated):
24.14
SA/Displacement (Reported):
28.44
Ballast/Disp Ratio:
35.71%
Displacement/Length:
72.71
Comfort Ratio:
8.07
Capsize Screening:
2.50
S-Number:
6.12
Notes
Electric motor is optional. 1.5kW (2 hp) which is retractible with an electric actuator in 7 seconds up or down..
