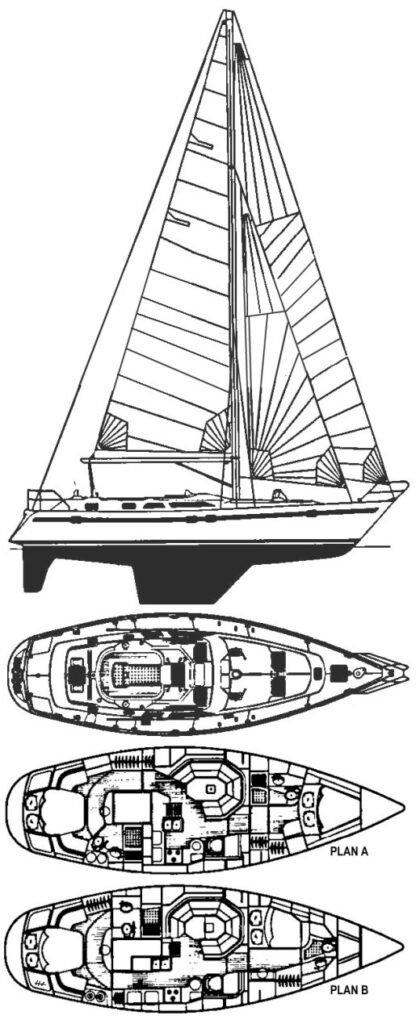

TASWELL 43
Built by Ta Shing Yacht Building (TAIWAN)
• Designed by Bill Dixon
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1987
Dimensions
Length Overall (LOA):
13.05 m
Length Waterline (LWL):
11.66 m
Beam:
4.17 m
Draft (Max):
1.91 m
Max Height:
18.90 m
Weight & Ballast
Displacement:
10,659 kg
Ballast:
4,354 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
43.43 m²
Mainsail Area:
36.42 m²
Total Sail Area (calculated):
79.85 m²
Sail Area (reported):
79.90 m²
I (Fore Triangle Height):
16.76 m
J (Fore Triangle Base):
5.18 m
P (Mainsail Hoist):
14.94 m
E (Boom Length):
4.88 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH-HTE
Engine Power:
55 HP
Fuel Capacity:
326 L
Water Capacity:
727 L
Performance Ratios
Hull Speed:
8.29 knots
SA/Displacement (Calculated):
16.49
SA/Displacement (Reported):
16.84
Ballast/Disp Ratio:
40.85%
Displacement/Length:
187.47
Comfort Ratio:
28.16
Capsize Screening:
1.91
S-Number:
2.84
Notes
Shoal draft: 5.25'
