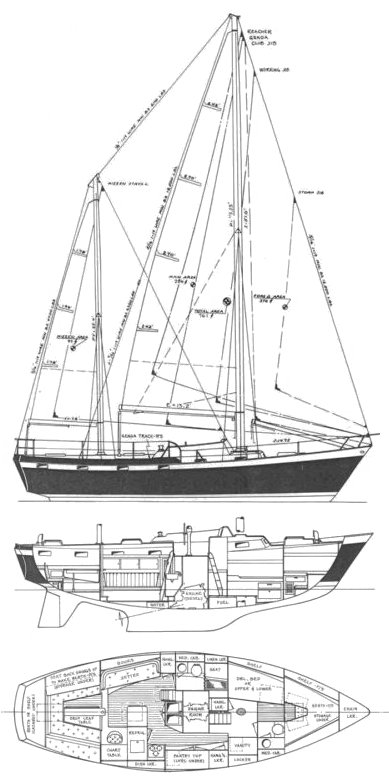

TARTAN TOCK 40
Built by Tartan Marine (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1976
Last Built:
1977
Number Built:
30
Dimensions
Length Overall (LOA):
12.60 m
Length Waterline (LWL):
9.85 m
Beam:
4.06 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
11,022 kg
Ballast:
4,082 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
34.94 m²
Mainsail Area:
29.02 m²
Total Sail Area (calculated):
63.96 m²
Sail Area (reported):
73.21 m²
I (Fore Triangle Height):
15.54 m
J (Fore Triangle Base):
4.50 m
P (Mainsail Hoist):
13.41 m
E (Boom Length):
4.33 m
Engine & Systems
Engine Make:
Ford Lehman
Engine Type:
Diesel
Engine Power:
80 HP
Fuel Capacity:
485 L
Water Capacity:
632 L
Performance Ratios
Hull Speed:
7.62 knots
SA/Displacement (Calculated):
12.92
SA/Displacement (Reported):
15.09
Ballast/Disp Ratio:
37.04%
Displacement/Length:
321.03
Comfort Ratio:
34.06
Capsize Screening:
1.84
S-Number:
1.30
Notes
'TOCK'= Tartan Offshore Cruising Ketch.
