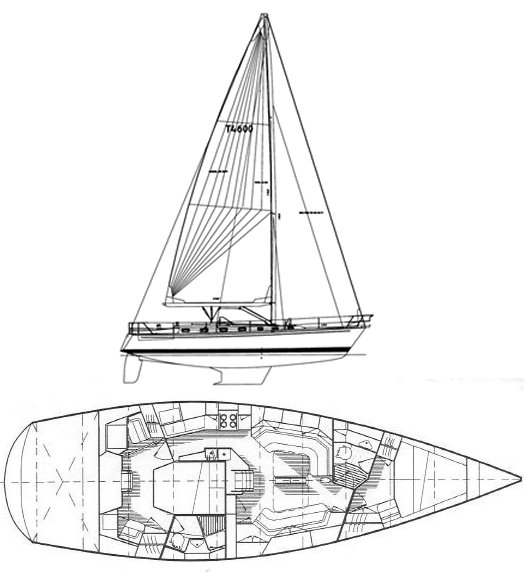

TARTAN 4600
Built by Tartan Marine (USA)
• Designed by Tim Jackett
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1990
Last Built:
2001
Dimensions
Length Overall (LOA):
14.08 m
Length Waterline (LWL):
12.07 m
Beam:
4.37 m
Draft (Max):
2.71 m
Weight & Ballast
Displacement:
12,701 kg
Ballast:
3,856 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
46.99 m²
Mainsail Area:
47.22 m²
Total Sail Area (calculated):
94.21 m²
Sail Area (reported):
94.20 m²
I (Fore Triangle Height):
18.14 m
J (Fore Triangle Base):
5.18 m
P (Mainsail Hoist):
16.31 m
E (Boom Length):
5.79 m
Engine & Systems
Engine Make:
Westerbeke or Yanmar
Engine Type:
Diesel
Engine Power:
63 HP
Fuel Capacity:
265 L
Water Capacity:
568 L
Performance Ratios
Hull Speed:
8.43 knots
SA/Displacement (Calculated):
17.30
SA/Displacement (Reported):
17.67
Ballast/Disp Ratio:
30.36%
Displacement/Length:
201.29
Comfort Ratio:
30.03
Capsize Screening:
1.89
S-Number:
2.77
Notes
Shallow draft 'beaver tail' keel:5.50'/1.68m
