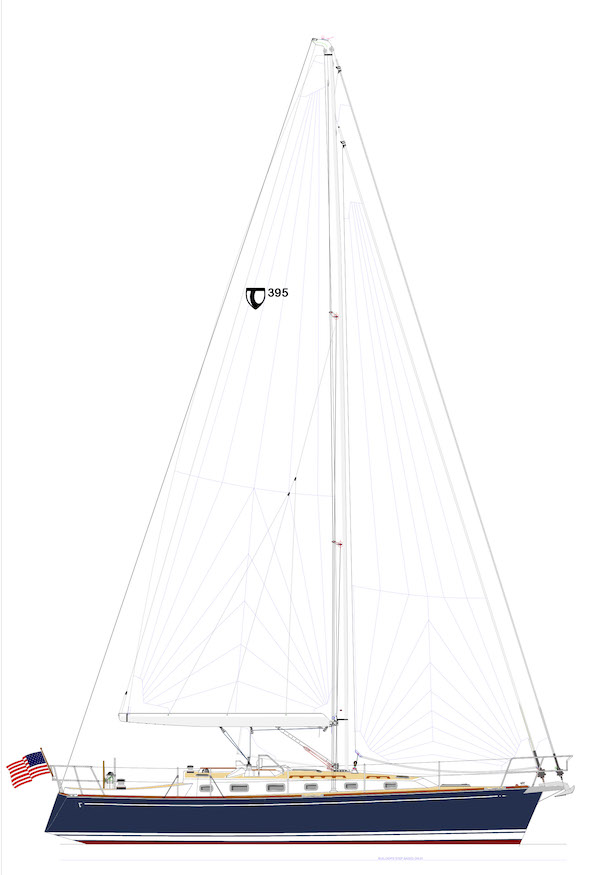

TARTAN 395
Built by Tartan Marine
• Designed by Tim Jackett
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Solent
Construction:
FG
First Built:
2019
Dimensions
Length Overall (LOA):
12.04 m
Length Waterline (LWL):
10.13 m
Beam:
3.91 m
Draft (Max):
1.88 m
Max Height:
19.07 m
Weight & Ballast
Displacement:
7,257 kg
Ballast:
2,495 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
36.11 m²
Mainsail Area:
37.72 m²
Total Sail Area (calculated):
73.83 m²
Sail Area (reported):
73.83 m²
I (Fore Triangle Height):
15.80 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
15.47 m
E (Boom Length):
4.88 m
Engine & Systems
Engine Type:
Diesel; Saildrive
Engine Power:
40 HP
Fuel Capacity:
151 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.73 knots
SA/Displacement (Calculated):
19.70
SA/Displacement (Reported):
20.10
Ballast/Disp Ratio:
34.38%
Displacement/Length:
194.31
Comfort Ratio:
23.53
Capsize Screening:
2.04
S-Number:
3.13
Notes
Beavertail keel: draft - 4.83ft; Displacement - 17,000 lbs; Ballast - 6,500 lbs.
