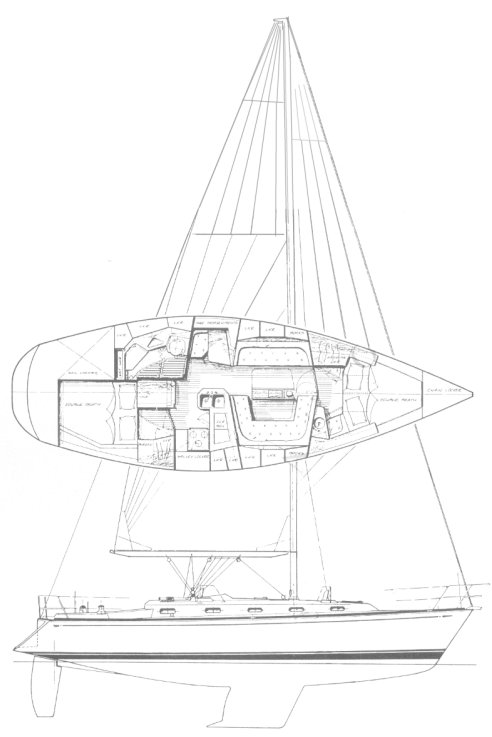

TARTAN 3800
Built by Tartan Marine (USA)
• Designed by Tim Jackett
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1994
Last Built:
1999
Number Built:
43
Dimensions
Length Overall (LOA):
11.58 m
Length Waterline (LWL):
9.45 m
Beam:
3.79 m
Draft (Max):
1.62 m
Max Height:
16.76 m
Weight & Ballast
Displacement:
7,257 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
32.93 m²
Mainsail Area:
28.84 m²
Total Sail Area (calculated):
61.77 m²
Sail Area (reported):
61.78 m²
I (Fore Triangle Height):
15.16 m
J (Fore Triangle Base):
4.34 m
P (Mainsail Hoist):
13.21 m
E (Boom Length):
4.37 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
50 HP
Fuel Capacity:
144 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
7.46 knots
SA/Displacement (Calculated):
16.48
SA/Displacement (Reported):
16.82
Ballast/Disp Ratio:
43.75%
Displacement/Length:
239.77
Comfort Ratio:
26.07
Capsize Screening:
1.98
S-Number:
2.26
Notes
Deep Keel:
