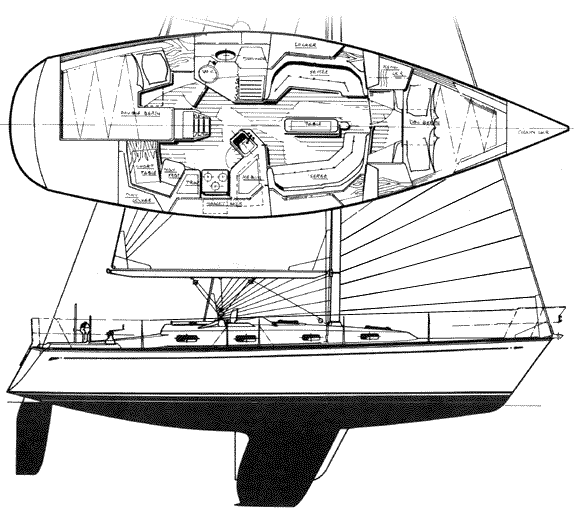

TARTAN 3500
Built by Tartan Marine (USA)
• Designed by Tim Jackett
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1993
Dimensions
Length Overall (LOA):
10.73 m
Length Waterline (LWL):
9.14 m
Beam:
3.58 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
5,171 kg
Ballast:
2,041 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.02 m²
Mainsail Area:
27.43 m²
Total Sail Area (calculated):
57.45 m²
Sail Area (reported):
57.41 m²
I (Fore Triangle Height):
14.33 m
J (Fore Triangle Base):
4.19 m
P (Mainsail Hoist):
12.59 m
E (Boom Length):
4.36 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM30F
Engine Power:
27 HP
Performance Ratios
Hull Speed:
7.34 knots
SA/Displacement (Calculated):
19.21
SA/Displacement (Reported):
19.59
Ballast/Disp Ratio:
39.47%
Displacement/Length:
188.49
Comfort Ratio:
20.97
Capsize Screening:
2.09
S-Number:
3.15
Notes
Shoal draft ('beaver tail'): 4.83'.
