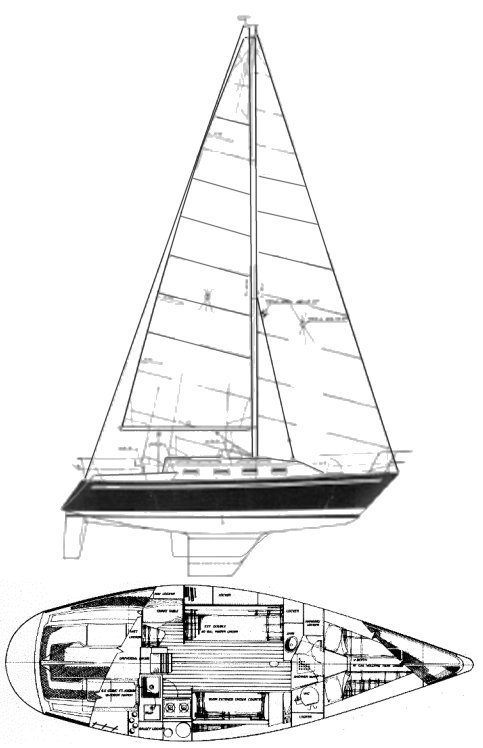

TARTAN 3000
Built by Tartan Marine (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1981
Last Built:
1988
Number Built:
97
Dimensions
Length Overall (LOA):
9.13 m
Length Waterline (LWL):
7.70 m
Beam:
3.07 m
Draft (Max):
1.58 m
Weight & Ballast
Displacement:
3,606 kg
Ballast:
1,737 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
22.65 m²
Mainsail Area:
18.30 m²
Total Sail Area (calculated):
40.95 m²
Sail Area (reported):
40.97 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
3.81 m
P (Mainsail Hoist):
10.44 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Model:
5411
Engine Power:
11 HP
Performance Ratios
Hull Speed:
6.73 knots
SA/Displacement (Calculated):
17.41
SA/Displacement (Reported):
17.77
Ballast/Disp Ratio:
48.18%
Displacement/Length:
220.46
Comfort Ratio:
21.23
Capsize Screening:
2.02
S-Number:
2.56
Notes
S&S design #2397.
