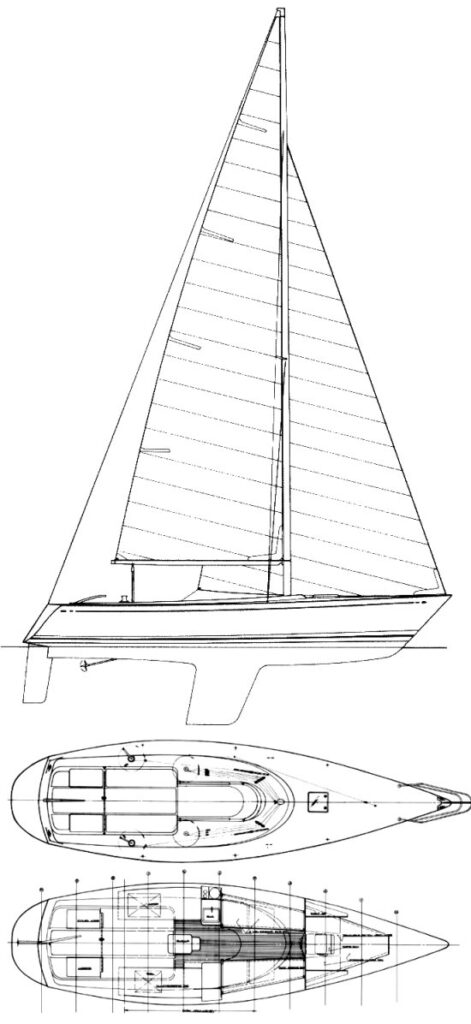

TARTAN 10
Built by Tartan Marine (USA)
• Designed by S&S
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG/cored deck
First Built:
1978
Number Built:
400
Dimensions
Length Overall (LOA):
10.10 m
Length Waterline (LWL):
8.23 m
Beam:
2.82 m
Draft (Max):
1.79 m
Weight & Ballast
Displacement:
3,039 kg
Ballast:
1,515 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
19.51 m²
Mainsail Area:
25.71 m²
Total Sail Area (calculated):
45.22 m²
Sail Area (reported):
45.15 m²
I (Fore Triangle Height):
10.67 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
12.27 m
E (Boom Length):
4.19 m
Engine & Systems
Engine Make:
Farryman
Engine Type:
Diesel
Fuel Capacity:
45 L
Water Capacity:
72 L
Performance Ratios
Hull Speed:
6.96 knots
SA/Displacement (Calculated):
21.55
SA/Displacement (Reported):
21.95
Ballast/Disp Ratio:
49.85%
Displacement/Length:
151.96
Comfort Ratio:
18.54
Capsize Screening:
1.97
S-Number:
4.01
