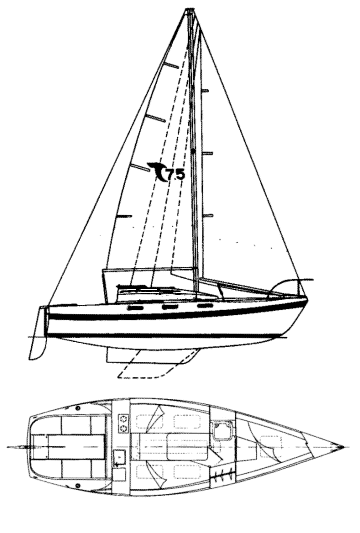

TANZER 7.5
Built by Tanzer Industries Ltd. (CAN)
• Designed by Johann Tanzer
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1977
Last Built:
1985
Number Built:
790
Dimensions
Length Overall (LOA):
7.49 m
Length Waterline (LWL):
6.65 m
Beam:
2.44 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
1,724 kg
Ballast:
726 kg
Sail Plan
Foresail Area:
13.52 m²
Mainsail Area:
9.33 m²
Total Sail Area (calculated):
22.85 m²
Sail Area (reported):
21.93 m²
I (Fore Triangle Height):
8.80 m
J (Fore Triangle Base):
3.07 m
P (Mainsail Hoist):
7.35 m
E (Boom Length):
2.54 m
Engine & Systems
Performance Ratios
Hull Speed:
6.26 knots
SA/Displacement (Calculated):
15.90
SA/Displacement (Reported):
15.55
Ballast/Disp Ratio:
42.11%
Displacement/Length:
163.07
Comfort Ratio:
16.24
Capsize Screening:
2.05
S-Number:
3.07
Notes
Shoal draft: 2.69'/0.82m
