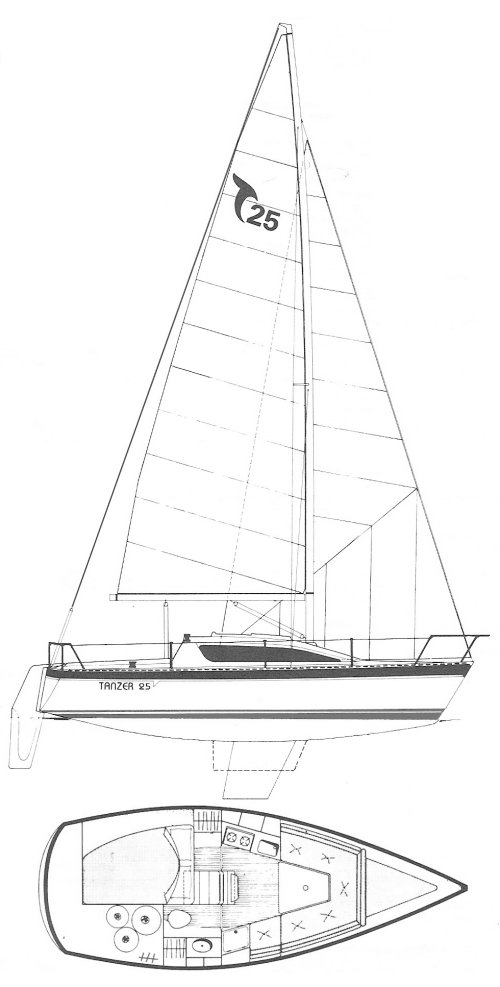

TANZER 25
Built by Tanzer Industries Ltd, (CAN)
• Designed by Joubert-Nivelt
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1986
Dimensions
Length Overall (LOA):
7.70 m
Length Waterline (LWL):
6.65 m
Beam:
2.92 m
Draft (Max):
1.43 m
Max Height:
11.89 m
Weight & Ballast
Displacement:
1,905 kg
Ballast:
748 kg
Sail Plan
Foresail Area:
13.66 m²
Mainsail Area:
16.64 m²
Total Sail Area (calculated):
30.30 m²
Sail Area (reported):
30.29 m²
I (Fore Triangle Height):
9.62 m
J (Fore Triangle Base):
2.84 m
P (Mainsail Hoist):
9.93 m
E (Boom Length):
3.35 m
Engine & Systems
Performance Ratios
Hull Speed:
6.26 knots
SA/Displacement (Calculated):
19.72
SA/Displacement (Reported):
20.09
Ballast/Disp Ratio:
39.29%
Displacement/Length:
180.24
Comfort Ratio:
14.00
Capsize Screening:
2.38
S-Number:
3.33
Notes
A shallow draft version of the TANZER 25 was also available. Thanks to John Kriz for providing updated information.
