SYNERGY 1000
Built by Timeless Marine (USA)
• Designed by Carl Schumacher
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1999
Number Built:
10
Dimensions
Length Overall (LOA):
10.01 m
Length Waterline (LWL):
8.89 m
Beam:
2.97 m
Draft (Max):
2.13 m
Weight & Ballast
Displacement:
1,950 kg
Ballast:
992 kg
Ballast Type:
Lead

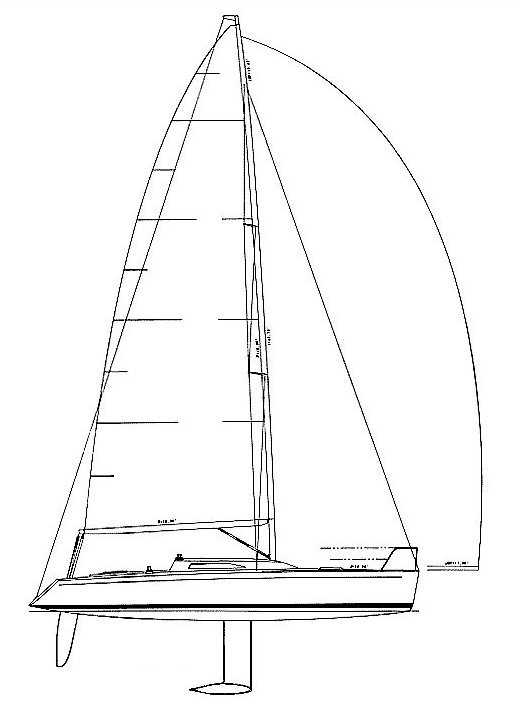

Sail Plan
Foresail Area:
22.71 m²
Mainsail Area:
30.24 m²
Total Sail Area (calculated):
52.95 m²
Sail Area (reported):
52.95 m²
I (Fore Triangle Height):
12.42 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
12.80 m
E (Boom Length):
4.72 m
Engine & Systems
Engine Make:
Honda
Engine Type:
Gas
Engine Model:
Saildrive
Performance Ratios
Hull Speed:
7.24 knots
SA/Displacement (Calculated):
33.92
SA/Displacement (Reported):
34.59
Ballast/Disp Ratio:
50.88%
Displacement/Length:
77.34
Comfort Ratio:
10.57
Capsize Screening:
2.40
S-Number:
7.47
Notes
Based on the earlier SONOMA 30 (1982)
