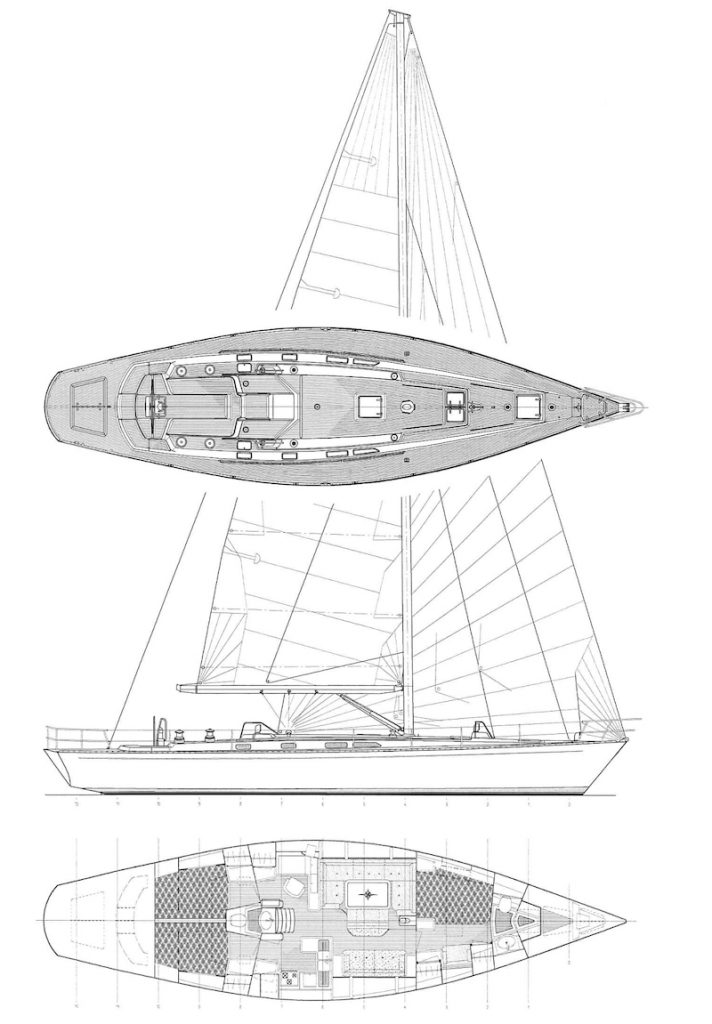

SWEDEN YACHTS 52
Built by Sweden Yachts (SEW)
• Designed by Peter Norlin and Jens Östmann
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG with balsa core
First Built:
1996
Last Built:
2002
Dimensions
Length Overall (LOA):
15.86 m
Length Waterline (LWL):
12.60 m
Beam:
4.35 m
Draft (Max):
2.60 m
Max Height:
22.20 m
Weight & Ballast
Displacement:
15,350 kg
Ballast:
6,000 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
62.41 m²
Mainsail Area:
57.02 m²
Total Sail Area (calculated):
119.43 m²
Sail Area (reported):
152.00 m²
I (Fore Triangle Height):
20.80 m
J (Fore Triangle Base):
6.00 m
P (Mainsail Hoist):
18.70 m
E (Boom Length):
6.10 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
TMD 31
Engine Power:
100 HP
Fuel Capacity:
700 L
Water Capacity:
700 L
Performance Ratios
Hull Speed:
8.62 knots
SA/Displacement (Calculated):
19.34
SA/Displacement (Reported):
25.13
Ballast/Disp Ratio:
39.09%
Displacement/Length:
213.84
Comfort Ratio:
34.07
Capsize Screening:
1.77
S-Number:
2.84
Notes
Cutter stay optional.
