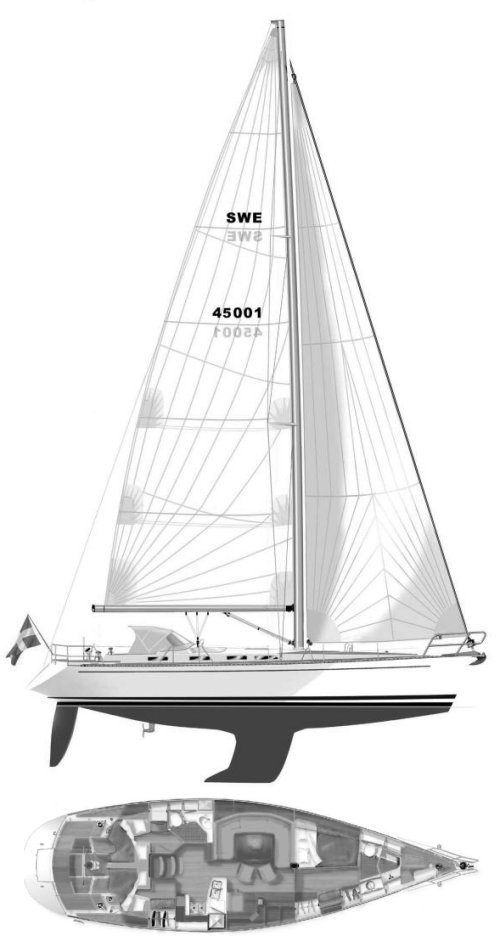

SWEDEN YACHTS 45
Built by Sweden Yachts
• Designed by Peter Norlin / Jens Östmann
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2000
Dimensions
Length Overall (LOA):
14.15 m
Length Waterline (LWL):
11.90 m
Beam:
4.18 m
Draft (Max):
2.30 m
Weight & Ballast
Displacement:
12,400 kg
Ballast:
5,200 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
48.23 m²
Mainsail Area:
53.25 m²
Total Sail Area (calculated):
101.48 m²
Sail Area (reported):
105.00 m²
I (Fore Triangle Height):
18.20 m
J (Fore Triangle Base):
5.30 m
P (Mainsail Hoist):
17.75 m
E (Boom Length):
6.00 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
TMD 22
Engine Power:
75 HP
Fuel Capacity:
285 L
Water Capacity:
435 L
Performance Ratios
Hull Speed:
8.37 knots
SA/Displacement (Calculated):
18.94
SA/Displacement (Reported):
20.01
Ballast/Disp Ratio:
41.94%
Displacement/Length:
205.10
Comfort Ratio:
31.34
Capsize Screening:
1.82
S-Number:
2.91
Notes
Wing keel option draft: 1.98m / 6.5ft
