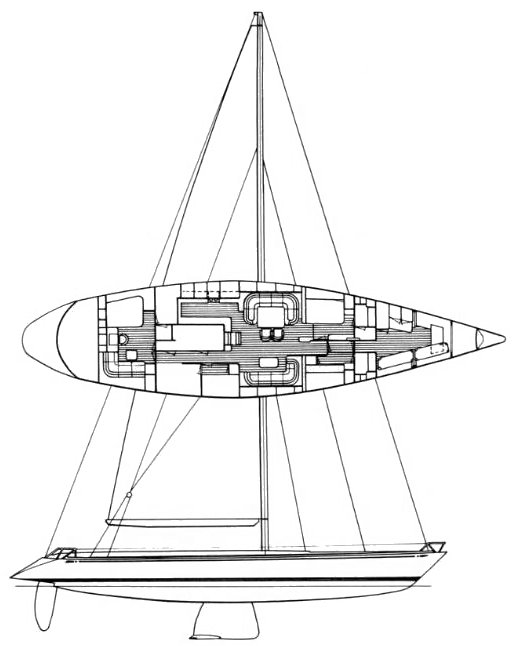

SWAN 86
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Wing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Last Built:
1990
Number Built:
3
Dimensions
Length Overall (LOA):
26.14 m
Length Waterline (LWL):
20.57 m
Beam:
6.20 m
Draft (Max):
3.66 m
Weight & Ballast
Displacement:
49,895 kg
Ballast:
19,958 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
284.10 m²
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
282 HP
Performance Ratios
Hull Speed:
11.01 knots
SA/Displacement (Reported):
21.42
Ballast/Disp Ratio:
40.00%
Displacement/Length:
159.67
Comfort Ratio:
42.22
Capsize Screening:
1.70
