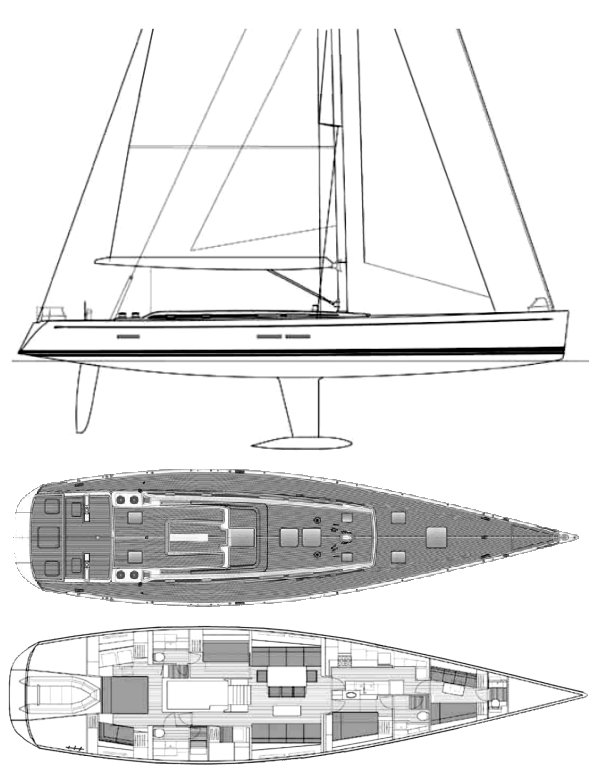

SWAN 80-2 FD
Built by Nautor (FIN)
• Designed by German Frers
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2010
Last Built:
2012
Number Built:
5
Dimensions
Length Overall (LOA):
25.08 m
Length Waterline (LWL):
22.19 m
Beam:
6.08 m
Draft (Max):
4.00 m
Weight & Ballast
Displacement:
35,902 kg
Ballast:
18,000 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
150.39 m²
Mainsail Area:
157.47 m²
Total Sail Area (calculated):
307.86 m²
Sail Area (reported):
307.88 m²
I (Fore Triangle Height):
32.00 m
J (Fore Triangle Base):
9.40 m
P (Mainsail Hoist):
30.30 m
E (Boom Length):
10.39 m
Engine & Systems
Engine Make:
Steyr
Engine Type:
Diesel
Engine Model:
MO196
Engine Power:
190 HP
Fuel Capacity:
1,499 L
Water Capacity:
1,200 L
Performance Ratios
Hull Speed:
11.43 knots
SA/Displacement (Calculated):
28.29
SA/Displacement (Reported):
28.90
Ballast/Disp Ratio:
50.14%
Displacement/Length:
91.58
Comfort Ratio:
30.05
Capsize Screening:
1.86
S-Number:
6.26
