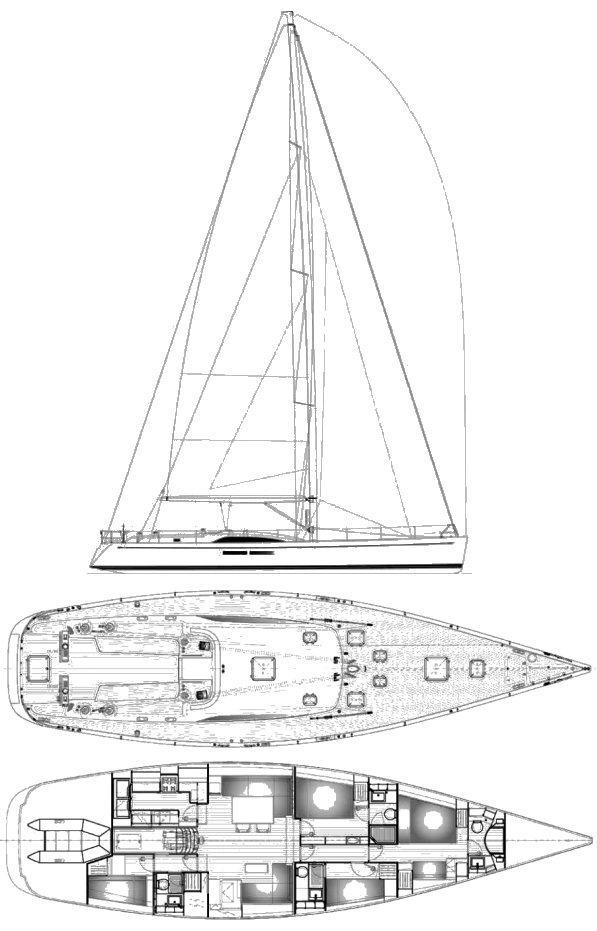

SWAN 66 S
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2006
Dimensions
Length Overall (LOA):
20.12 m
Length Waterline (LWL):
17.19 m
Beam:
5.39 m
Draft (Max):
3.20 m
Weight & Ballast
Displacement:
29,937 kg
Ballast:
9,398 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
102.42 m²
Mainsail Area:
95.75 m²
Total Sail Area (calculated):
198.17 m²
Sail Area (reported):
198.16 m²
I (Fore Triangle Height):
27.50 m
J (Fore Triangle Base):
7.45 m
P (Mainsail Hoist):
25.20 m
E (Boom Length):
7.60 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
163 HP
Fuel Capacity:
1,298 L
Water Capacity:
1,261 L
Performance Ratios
Hull Speed:
10.06 knots
SA/Displacement (Calculated):
20.55
SA/Displacement (Reported):
20.99
Ballast/Disp Ratio:
31.39%
Displacement/Length:
164.23
Comfort Ratio:
37.54
Capsize Screening:
1.75
S-Number:
3.68
Notes
Same hull as SWAN 66 FD (flush deck).
