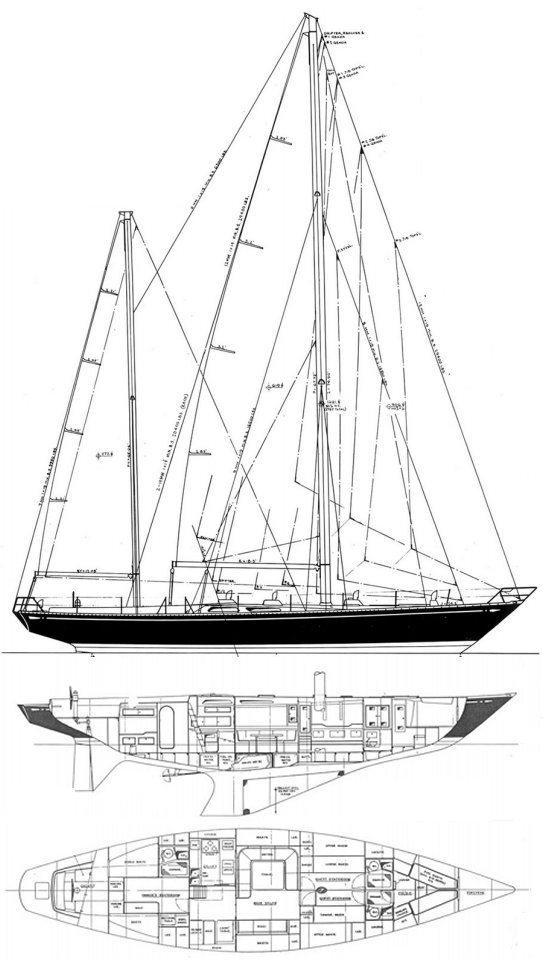

SWAN 65-S&S KETCH
Built by Nautor
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1972
Last Built:
1989
Number Built:
41
Dimensions
Length Overall (LOA):
19.68 m
Length Waterline (LWL):
14.33 m
Beam:
4.96 m
Draft (Max):
2.93 m
Weight & Ballast
Displacement:
31,751 kg
Ballast:
13,880 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
84.20 m²
Mainsail Area:
57.57 m²
Total Sail Area (calculated):
141.77 m²
Sail Area (reported):
167.04 m²
I (Fore Triangle Height):
22.83 m
J (Fore Triangle Base):
7.38 m
P (Mainsail Hoist):
20.64 m
E (Boom Length):
5.58 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD 32
Engine Power:
88 HP
Fuel Capacity:
216 L
Water Capacity:
329 L
Performance Ratios
Hull Speed:
9.19 knots
SA/Displacement (Calculated):
14.14
SA/Displacement (Reported):
17.02
Ballast/Disp Ratio:
43.71%
Displacement/Length:
300.99
Comfort Ratio:
50.44
Capsize Screening:
1.58
S-Number:
1.53
Notes
S&S design #2110.
