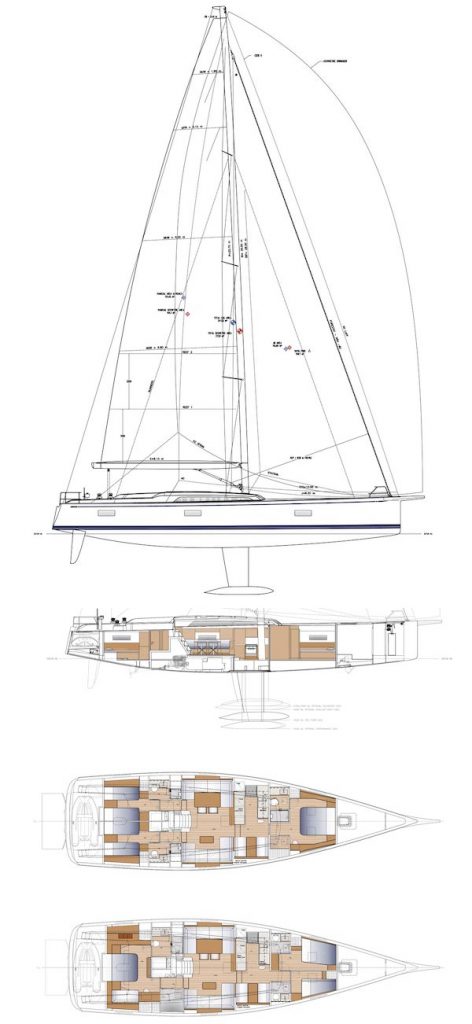

SWAN 65 (FRERS)
Built by Nautor Swan (FIN)
• Designed by German Frers
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
Construction:
GRP
First Built:
2018
Dimensions
Length Overall (LOA):
20.11 m
Length Waterline (LWL):
18.38 m
Beam:
5.62 m
Draft (Max):
3.50 m
Weight & Ballast
Displacement:
27,250 kg
Ballast:
6,570 kg
Sail Plan
Foresail Area:
108.64 m²
Mainsail Area:
104.07 m²
Total Sail Area (calculated):
212.71 m²
Sail Area (reported):
240.20 m²
I (Fore Triangle Height):
26.50 m
J (Fore Triangle Base):
8.20 m
P (Mainsail Hoist):
25.70 m
E (Boom Length):
8.10 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
D3-150
Engine Power:
150 HP
Fuel Capacity:
1,200 L
Water Capacity:
1,000 L
Performance Ratios
Hull Speed:
10.41 knots
SA/Displacement (Calculated):
23.49
SA/Displacement (Reported):
27.09
Ballast/Disp Ratio:
24.11%
Displacement/Length:
122.32
Comfort Ratio:
30.90
Capsize Screening:
1.89
S-Number:
4.84
Notes
Interior design: Heini Gustafsson
