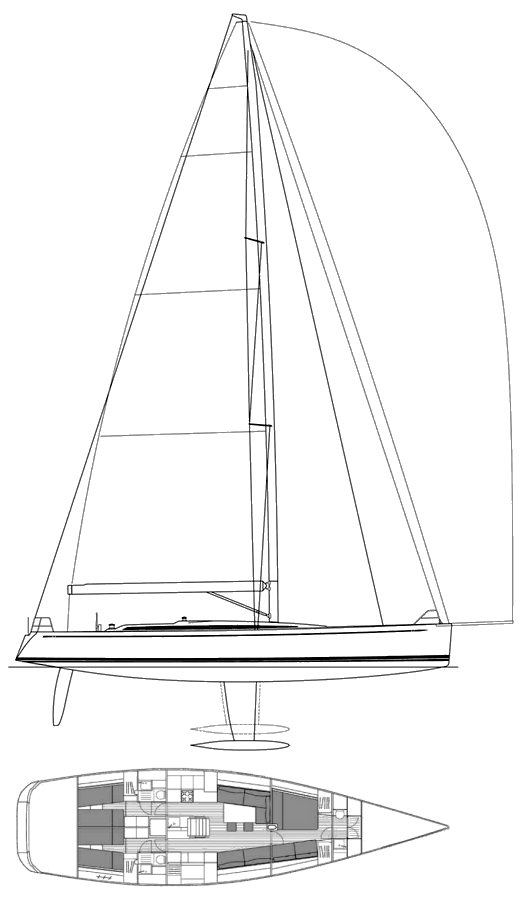

SWAN 60 FD
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2006
Number Built:
10
Dimensions
Length Overall (LOA):
18.86 m
Length Waterline (LWL):
16.70 m
Beam:
5.09 m
Draft (Max):
3.60 m
Weight & Ballast
Displacement:
18,700 kg
Ballast:
7,700 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
89.98 m²
Mainsail Area:
103.33 m²
Total Sail Area (calculated):
193.31 m²
Sail Area (reported):
193.33 m²
I (Fore Triangle Height):
25.46 m
J (Fore Triangle Base):
7.07 m
P (Mainsail Hoist):
24.32 m
E (Boom Length):
8.50 m
Engine & Systems
Engine Make:
Volvo or Yanmar
Engine Type:
Diesel
Engine Power:
110 HP
Fuel Capacity:
500 L
Water Capacity:
397 L
Performance Ratios
Hull Speed:
9.92 knots
SA/Displacement (Calculated):
27.44
SA/Displacement (Reported):
28.02
Ballast/Disp Ratio:
41.18%
Displacement/Length:
111.84
Comfort Ratio:
26.35
Capsize Screening:
1.94
S-Number:
5.62
Notes
Asym.Spin.: 320 m2/3444 sq.ft.
