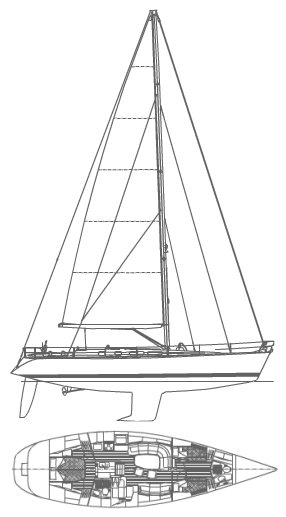

SWAN 48-2 (FRERS)
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Fin Keel w/bulb
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1995
Last Built:
2002
Number Built:
57
Dimensions
Length Overall (LOA):
15.09 m
Length Waterline (LWL):
12.50 m
Beam:
4.32 m
Draft (Max):
2.38 m
Weight & Ballast
Displacement:
14,288 kg
Ballast:
5,488 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
54.95 m²
Mainsail Area:
51.19 m²
Total Sail Area (calculated):
106.14 m²
Sail Area (reported):
106.10 m²
I (Fore Triangle Height):
19.80 m
J (Fore Triangle Base):
5.55 m
P (Mainsail Hoist):
17.65 m
E (Boom Length):
5.80 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
53 HP
Performance Ratios
Hull Speed:
8.58 knots
SA/Displacement (Calculated):
18.03
SA/Displacement (Reported):
18.40
Ballast/Disp Ratio:
38.41%
Displacement/Length:
203.89
Comfort Ratio:
32.73
Capsize Screening:
1.80
S-Number:
2.82
Notes
A regatta version (SWAN 48R) was available with deeper keel, fractional rig and more spartan interior.
