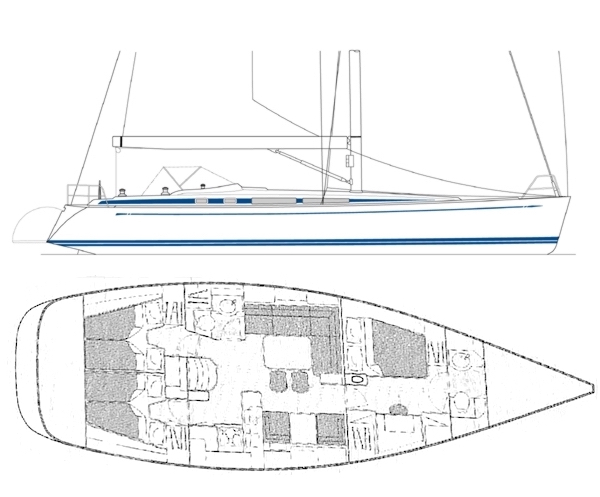

SWAN 46 MKIII
Built by Nautor
• Designed by Germán Frers
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2004
Last Built:
2007
Number Built:
25
Dimensions
Length Overall (LOA):
14.02 m
Length Waterline (LWL):
12.06 m
Beam:
4.26 m
Draft (Max):
2.20 m
Weight & Ballast
Displacement:
14,700 kg
Ballast:
5,500 kg
Sail Plan
Foresail Area:
49.29 m²
Mainsail Area:
50.72 m²
Total Sail Area (calculated):
100.01 m²
Sail Area (reported):
109.50 m²
I (Fore Triangle Height):
18.60 m
J (Fore Triangle Base):
5.30 m
P (Mainsail Hoist):
16.90 m
E (Boom Length):
6.00 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
72 HP
Fuel Capacity:
350 L
Water Capacity:
450 L
Performance Ratios
Hull Speed:
8.43 knots
SA/Displacement (Calculated):
16.67
SA/Displacement (Reported):
18.63
Ballast/Disp Ratio:
37.41%
Displacement/Length:
233.51
Comfort Ratio:
35.99
Capsize Screening:
1.76
S-Number:
2.34
Notes
AKA SWAN 461
