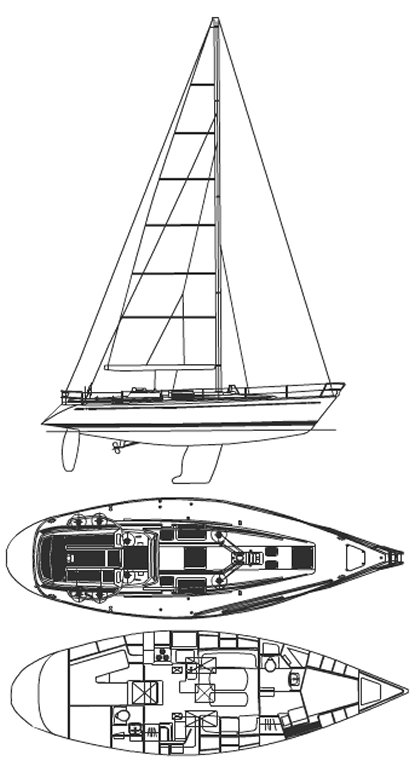

SWAN 44 (FRERS)
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Last Built:
1994
Number Built:
19
Dimensions
Length Overall (LOA):
13.41 m
Length Waterline (LWL):
10.54 m
Beam:
4.17 m
Draft (Max):
2.51 m
Weight & Ballast
Displacement:
11,113 kg
Ballast:
3,493 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
44.57 m²
Mainsail Area:
38.12 m²
Total Sail Area (calculated):
82.69 m²
Sail Area (reported):
82.68 m²
I (Fore Triangle Height):
17.48 m
J (Fore Triangle Base):
5.10 m
P (Mainsail Hoist):
15.47 m
E (Boom Length):
4.93 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Power:
50 HP
Fuel Capacity:
265 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
7.88 knots
SA/Displacement (Calculated):
16.60
SA/Displacement (Reported):
16.95
Ballast/Disp Ratio:
31.43%
Displacement/Length:
264.51
Comfort Ratio:
31.10
Capsize Screening:
1.89
S-Number:
2.04
Notes
Shallow draft: 2.1m / 6.89'
