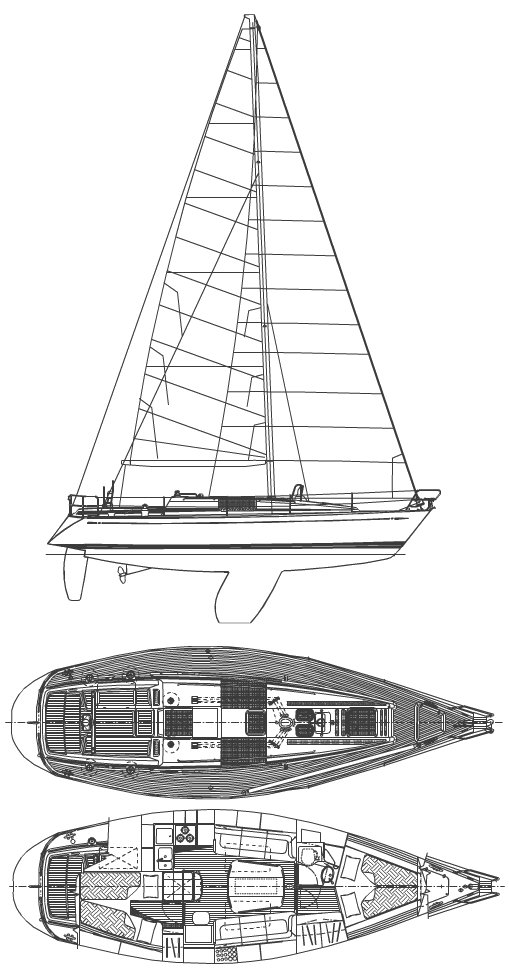

SWAN 36-2
Built by Nautor
• Designed by German Frers/A. Winch
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Last Built:
1996
Number Built:
55
Dimensions
Length Overall (LOA):
11.16 m
Length Waterline (LWL):
9.06 m
Beam:
3.65 m
Draft (Max):
2.11 m
Weight & Ballast
Displacement:
6,700 kg
Ballast:
2,540 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
31.29 m²
Mainsail Area:
26.67 m²
Total Sail Area (calculated):
57.96 m²
Sail Area (reported):
57.97 m²
I (Fore Triangle Height):
14.55 m
J (Fore Triangle Base):
4.30 m
P (Mainsail Hoist):
12.70 m
E (Boom Length):
4.20 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
2003R
Engine Power:
28 HP
Fuel Capacity:
121 L
Water Capacity:
238 L
Performance Ratios
Hull Speed:
7.31 knots
SA/Displacement (Calculated):
16.31
SA/Displacement (Reported):
16.65
Ballast/Disp Ratio:
37.91%
Displacement/Length:
251.18
Comfort Ratio:
26.32
Capsize Screening:
1.96
S-Number:
2.13
