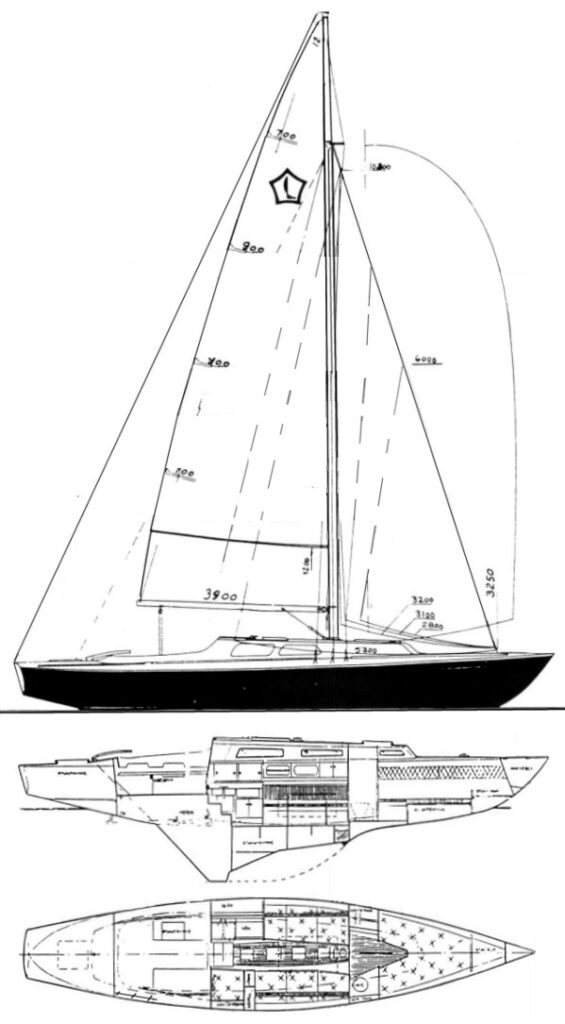

SVEAKRYSSARE
Built by Lidingo Shipyard/Åkersberga (SWE)
• Designed by Arvid Laurin
General Information
Hull Type:
Fin Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1972
Last Built:
1982
Number Built:
150
Dimensions
Length Overall (LOA):
11.04 m
Length Waterline (LWL):
8.54 m
Beam:
2.44 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
3,650 kg
Ballast:
2,050 kg
Sail Plan
Foresail Area:
16.41 m²
Mainsail Area:
22.92 m²
Total Sail Area (calculated):
39.33 m²
Sail Area (reported):
39.30 m²
I (Fore Triangle Height):
10.10 m
J (Fore Triangle Base):
3.25 m
P (Mainsail Hoist):
11.75 m
E (Boom Length):
3.90 m
Engine & Systems
Performance Ratios
Hull Speed:
7.09 knots
SA/Displacement (Calculated):
16.59
SA/Displacement (Reported):
16.91
Ballast/Disp Ratio:
56.16%
Displacement/Length:
163.30
Comfort Ratio:
25.52
Capsize Screening:
1.60
S-Number:
3.17
Notes
Most orignally sold as kits. Later boats built in Finland. (Joemarin) JOEMARIN 36?
