BLUESTORM 900
Built by Beaconax (GER)
• Designed by Keith Callaghan
General Information
Hull Type:
Swing keel w/dual rudders
Rigging Type:
Fractional Sloop
Construction:
Wood (plywood and cedar composite)
First Built:
2015
Dimensions
Length Overall (LOA):
9.00 m
Length Waterline (LWL):
8.80 m
Beam:
3.00 m
Draft (Max):
2.20 m
Draft (Min):
0.90 m
Headroom:
1.86 m
Weight & Ballast
Displacement:
1,800 kg
Ballast Type:
Lead

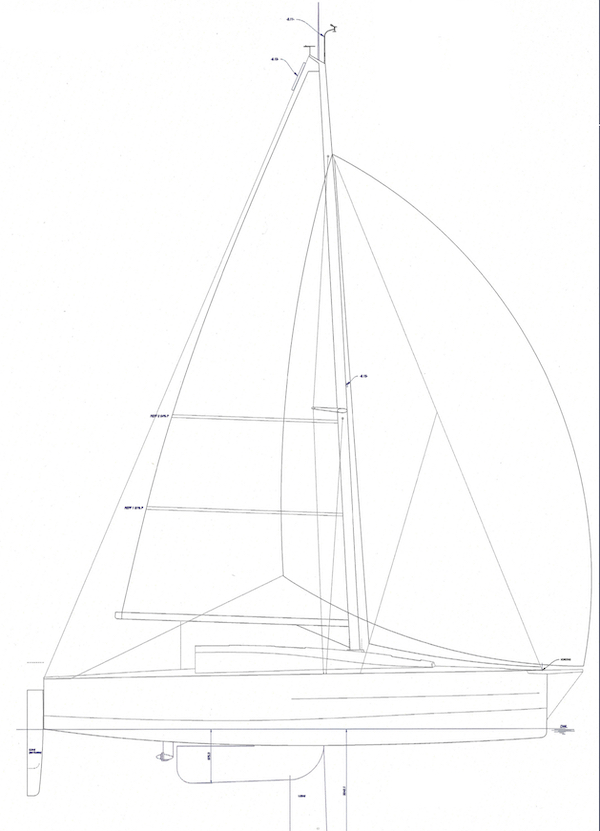

Sail Plan
Foresail Area:
14.05 m²
Mainsail Area:
20.51 m²
Total Sail Area (calculated):
34.56 m²
Sail Area (reported):
37.30 m²
I (Fore Triangle Height):
9.00 m
J (Fore Triangle Base):
3.12 m
P (Mainsail Hoist):
9.97 m
E (Boom Length):
4.11 m
Engine & Systems
Engine Type:
Outboard
Engine Power:
15 HP
Performance Ratios
Hull Speed:
7.20 knots
SA/Displacement (Calculated):
23.36
SA/Displacement (Reported):
25.70
Displacement/Length:
73.62
Comfort Ratio:
10.04
Capsize Screening:
2.49
S-Number:
5.96
Notes
Sail area:
