SUNWIND 27
Built by OY Nykra (FIN)
• Designed by Tord Sundén
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1982
Last Built:
1990
Number Built:
300
Dimensions
Length Overall (LOA):
8.22 m
Length Waterline (LWL):
6.42 m
Beam:
2.60 m
Draft (Max):
1.55 m
Max Height:
12.41 m
Weight & Ballast
Displacement:
2,800 kg
Ballast:
1,100 kg

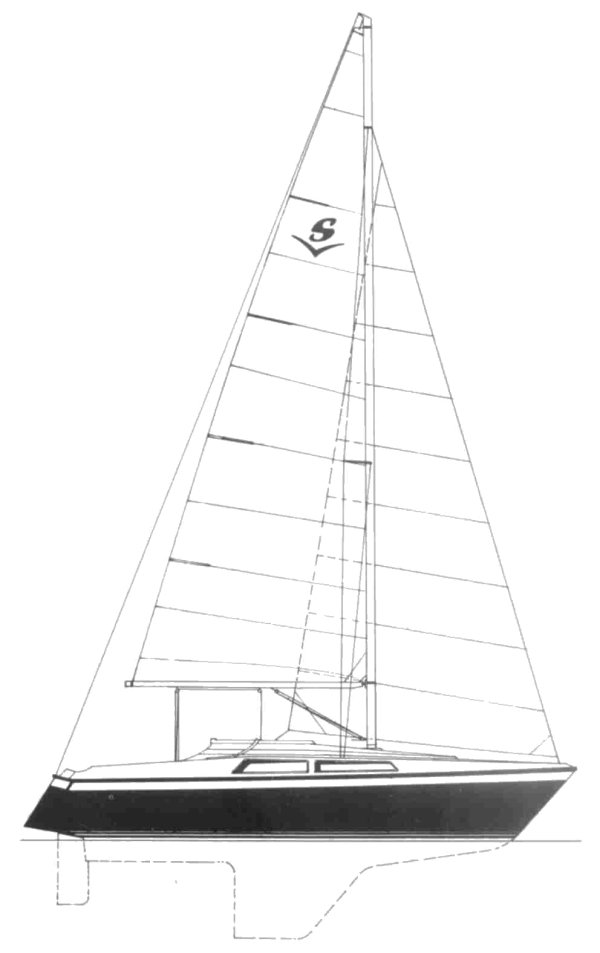

Sail Plan
Foresail Area:
11.92 m²
Mainsail Area:
17.14 m²
Total Sail Area (calculated):
29.06 m²
Sail Area (reported):
28.99 m²
I (Fore Triangle Height):
8.67 m
J (Fore Triangle Base):
2.75 m
P (Mainsail Hoist):
9.80 m
E (Boom Length):
3.50 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD5B
Fuel Capacity:
49 L
Water Capacity:
76 L
Performance Ratios
Hull Speed:
6.15 knots
SA/Displacement (Calculated):
14.63
SA/Displacement (Reported):
14.88
Ballast/Disp Ratio:
39.28%
Displacement/Length:
295.03
Comfort Ratio:
24.04
Capsize Screening:
1.86
S-Number:
1.62
Notes
Later boats have a standard trunk cabin.
