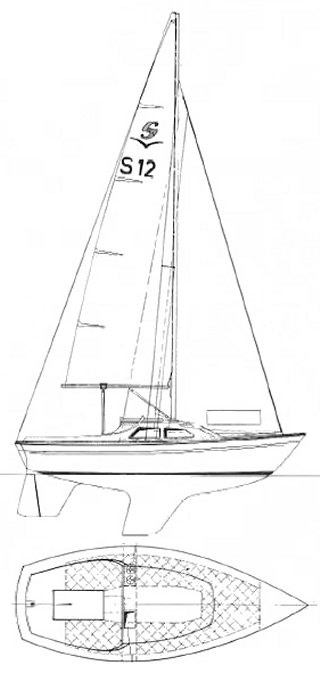

SUNWIND 20
Built by OY Nykra AB (FIN)
• Designed by Tord Sundén
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1970
Last Built:
1982
Number Built:
200
Dimensions
Length Overall (LOA):
6.00 m
Length Waterline (LWL):
5.00 m
Beam:
2.45 m
Draft (Max):
1.25 m
Max Height:
8.31 m
Weight & Ballast
Displacement:
1,650 kg
Ballast:
750 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
7.57 m²
Mainsail Area:
8.36 m²
Total Sail Area (calculated):
15.93 m²
Sail Area (reported):
15.89 m²
I (Fore Triangle Height):
6.88 m
J (Fore Triangle Base):
2.20 m
P (Mainsail Hoist):
7.60 m
E (Boom Length):
2.20 m
Engine & Systems
Performance Ratios
Hull Speed:
5.43 knots
SA/Displacement (Calculated):
11.41
SA/Displacement (Reported):
11.60
Ballast/Disp Ratio:
45.44%
Displacement/Length:
368.20
Comfort Ratio:
20.13
Capsize Screening:
2.09
S-Number:
0.95
Notes
Originally built in Norway and called SAGA WIND 20.
