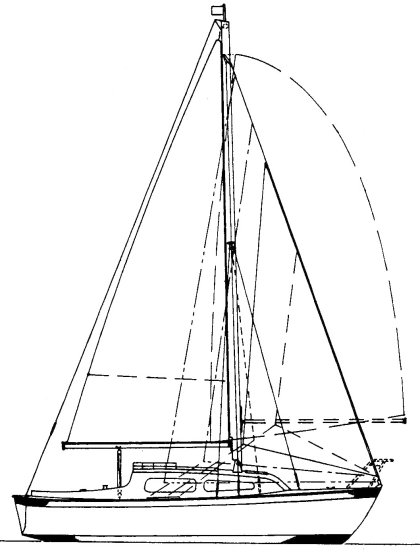

SUNMAID 20
Built by Hall & Hall (AUSTRALIA)
• Designed by John B. Brooke
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1975
Last Built:
1981
Number Built:
250
Dimensions
Length Overall (LOA):
6.10 m
Length Waterline (LWL):
5.21 m
Beam:
2.29 m
Draft (Max):
0.99 m
Draft (Min):
0.38 m
Weight & Ballast
Displacement:
820 kg
Ballast:
332 kg
Sail Plan
Sail Area (reported):
15.05 m²
Engine & Systems
Engine Type:
Outboard
Performance Ratios
Hull Speed:
5.54 knots
SA/Displacement (Reported):
17.50
Ballast/Disp Ratio:
40.49%
Displacement/Length:
161.42
Comfort Ratio:
10.61
Capsize Screening:
2.47
