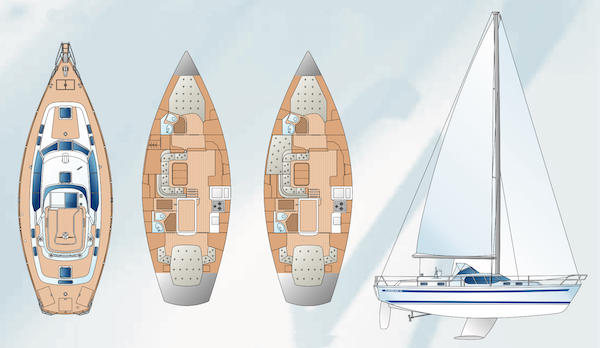

SUNBEAM 42 DS
Built by Schöchl Yacthbau
• Designed by J&J Design
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1996
Last Built:
2007
Number Built:
29
Dimensions
Length Overall (LOA):
12.60 m
Length Waterline (LWL):
11.20 m
Beam:
4.40 m
Draft (Max):
1.95 m
Headroom:
2.12 m
Weight & Ballast
Displacement:
12,600 kg
Ballast:
4,000 kg
Sail Plan
Sail Area (reported):
98.70 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
75 HP
Fuel Capacity:
300 L
Water Capacity:
570 L
Performance Ratios
Hull Speed:
8.12 knots
SA/Displacement (Reported):
18.61
Ballast/Disp Ratio:
31.74%
Displacement/Length:
249.85
Comfort Ratio:
32.16
Capsize Screening:
1.91
Notes
Optional water tanks up to 770 L / 203 Gal.
