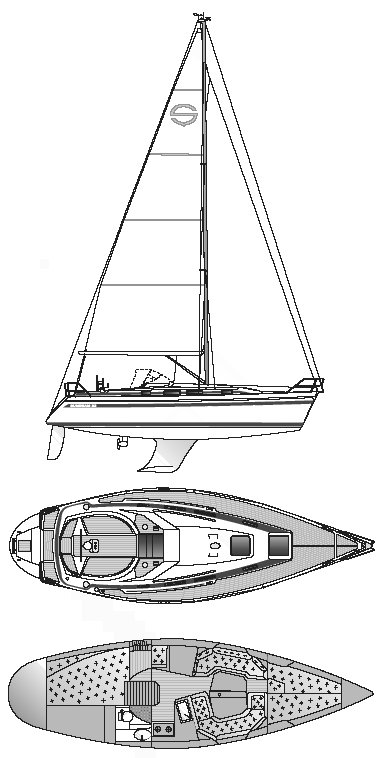

SUNBEAM 33
Built by Schöchl Yachtbau
• Designed by J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1995
Last Built:
2006
Dimensions
Length Overall (LOA):
10.30 m
Length Waterline (LWL):
8.90 m
Beam:
3.20 m
Draft (Max):
1.80 m
Weight & Ballast
Displacement:
4,500 kg
Ballast:
1,500 kg
Sail Plan
Sail Area (reported):
61.97 m²
Engine & Systems
Engine Type:
Diesel
Engine Power:
20 HP
Fuel Capacity:
129 L
Water Capacity:
201 L
Performance Ratios
Hull Speed:
7.24 knots
SA/Displacement (Reported):
23.19
Ballast/Disp Ratio:
33.33%
Displacement/Length:
177.89
Comfort Ratio:
21.88
Capsize Screening:
1.96
Notes
Shoal draft vers: 1,35m/4.43'
