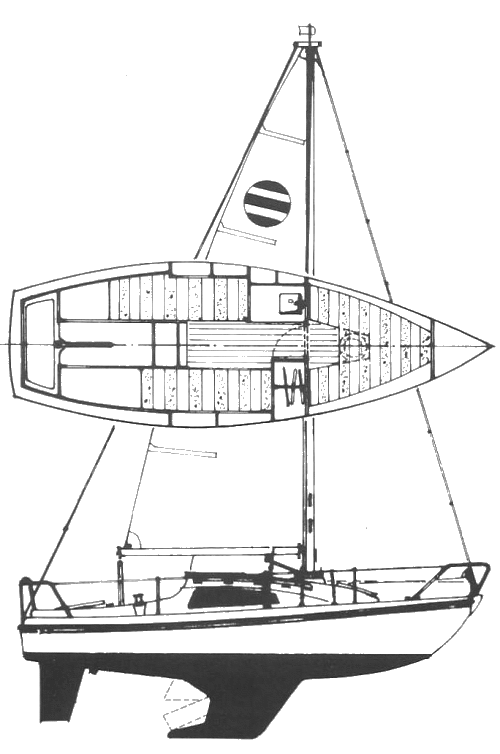

SUNBEAM 22
Built by Schöchl Werft (AUST)
• Designed by E. G. van de Stadt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1964
Number Built:
1200
Dimensions
Length Overall (LOA):
6.70 m
Length Waterline (LWL):
5.60 m
Beam:
2.15 m
Draft (Max):
1.15 m
Weight & Ballast
Displacement:
950 kg
Ballast:
349 kg
Sail Plan
Sail Area (reported):
19.00 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.74 knots
SA/Displacement (Reported):
20.04
Ballast/Disp Ratio:
36.77%
Displacement/Length:
150.80
Comfort Ratio:
12.33
Capsize Screening:
2.21
Notes
The first of the 'Sunbeam' series.
