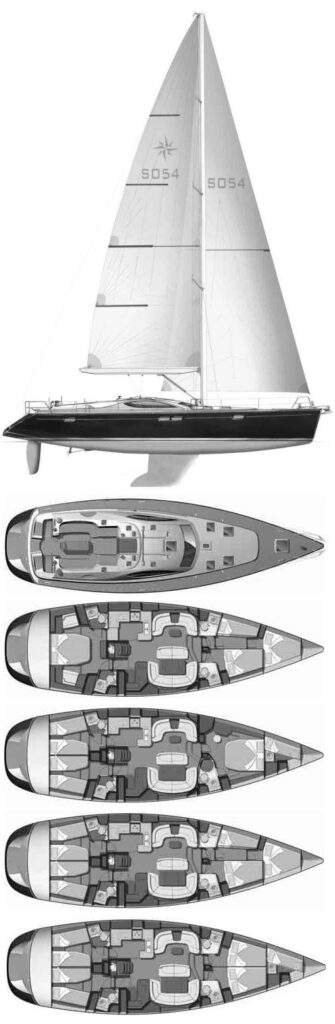

SUN ODYSSEY 54 DS (JEANNEAU)
Built by Jeanneau
• Designed by Fauroux & Garroni
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2004
Dimensions
Length Overall (LOA):
16.74 m
Length Waterline (LWL):
14.78 m
Beam:
4.85 m
Draft (Max):
1.98 m
Max Height:
22.50 m
Weight & Ballast
Displacement:
17,000 kg
Ballast:
5,000 kg
Sail Plan
Foresail Area:
59.39 m²
Mainsail Area:
53.41 m²
Total Sail Area (calculated):
112.80 m²
Sail Area (reported):
112.78 m²
I (Fore Triangle Height):
20.14 m
J (Fore Triangle Base):
5.90 m
P (Mainsail Hoist):
18.26 m
E (Boom Length):
5.85 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH4 HTE
Engine Power:
100 HP
Fuel Capacity:
723 L
Water Capacity:
931 L
Performance Ratios
Hull Speed:
9.33 knots
SA/Displacement (Calculated):
17.06
SA/Displacement (Reported):
17.42
Ballast/Disp Ratio:
29.41%
Displacement/Length:
146.66
Comfort Ratio:
28.82
Capsize Screening:
1.91
S-Number:
3.48
Notes
Deep Keel - draft: 7.5'
