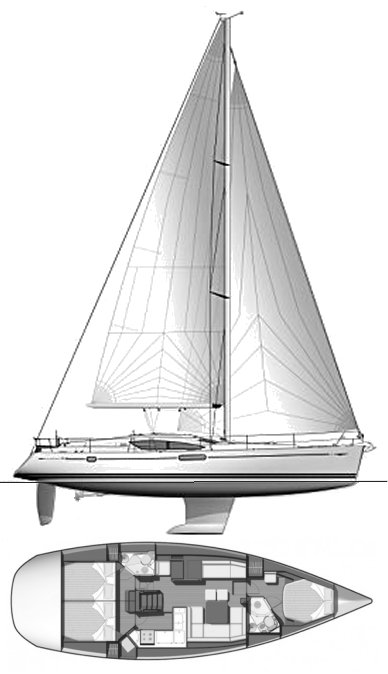

SUN ODYSSEY 45 DS (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by P. Briand
General Information
Hull Type:
Fin Keel w/bulb
Rigging Type:
Fractional (9/10) Sloop
Construction:
GRP
First Built:
2007
Dimensions
Length Overall (LOA):
13.75 m
Length Waterline (LWL):
11.45 m
Beam:
4.37 m
Draft (Max):
2.05 m
Max Height:
19.00 m
Weight & Ballast
Displacement:
9,900 kg
Ballast:
2,954 kg
Ballast Type:
Cast iron
Sail Plan
Foresail Area:
38.47 m²
Mainsail Area:
40.47 m²
Total Sail Area (calculated):
78.94 m²
Sail Area (reported):
99.60 m²
I (Fore Triangle Height):
16.54 m
J (Fore Triangle Base):
4.65 m
P (Mainsail Hoist):
15.27 m
E (Boom Length):
5.30 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel; Saildrive
Engine Power:
54 HP
Fuel Capacity:
240 L
Water Capacity:
635 L
Performance Ratios
Hull Speed:
8.21 knots
SA/Displacement (Calculated):
17.12
SA/Displacement (Reported):
22.05
Ballast/Disp Ratio:
29.84%
Displacement/Length:
183.74
Comfort Ratio:
24.41
Capsize Screening:
2.06
S-Number:
2.97
Notes
LOD: 13.41 m / 44 ft
