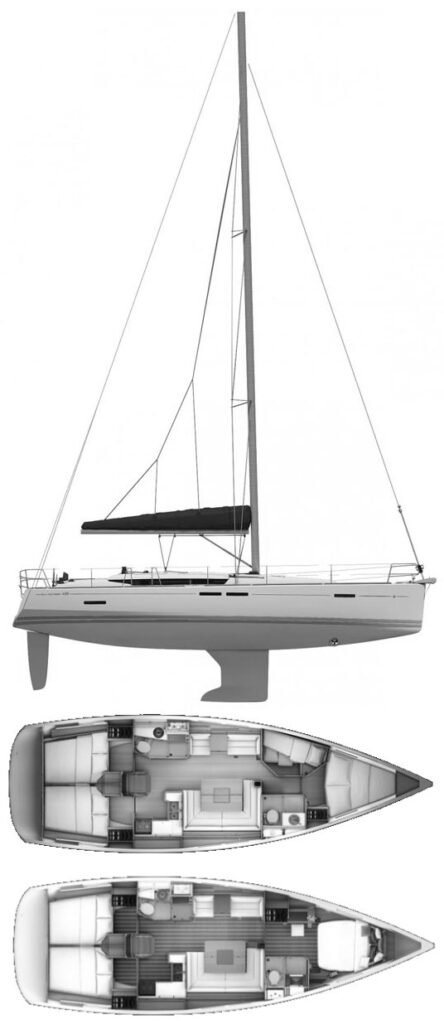

SUN ODYSSEY 439 (JEANNEAU)
Built by Jeanneau
• Designed by P. Briand
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2011
Dimensions
Length Overall (LOA):
13.34 m
Length Waterline (LWL):
12.00 m
Beam:
4.24 m
Draft (Max):
2.20 m
Weight & Ballast
Displacement:
9,880 kg
Ballast:
2,850 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
43.23 m²
Mainsail Area:
41.99 m²
Total Sail Area (calculated):
85.22 m²
Sail Area (reported):
85.19 m²
I (Fore Triangle Height):
16.60 m
J (Fore Triangle Base):
5.21 m
P (Mainsail Hoist):
16.00 m
E (Boom Length):
5.25 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH5-CE
Engine Power:
54 HP
Fuel Capacity:
201 L
Water Capacity:
329 L
Performance Ratios
Hull Speed:
8.41 knots
SA/Displacement (Calculated):
18.51
SA/Displacement (Reported):
18.89
Ballast/Disp Ratio:
28.85%
Displacement/Length:
159.34
Comfort Ratio:
24.83
Capsize Screening:
2.00
S-Number:
3.49
Notes
Shoal draft: 1.6m/5.25'
