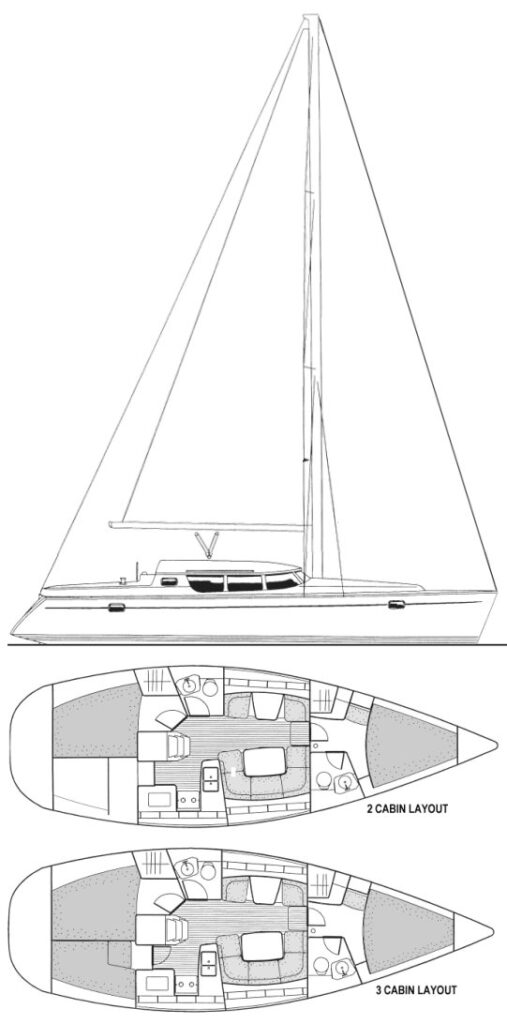

SUN ODYSSEY 40 DS (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Daniel Andrieu
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2000
Last Built:
2004
Dimensions
Length Overall (LOA):
12.19 m
Length Waterline (LWL):
10.16 m
Beam:
3.96 m
Draft (Max):
1.96 m
Weight & Ballast
Displacement:
7,201 kg
Ballast:
2,402 kg
Sail Plan
Foresail Area:
32.17 m²
Mainsail Area:
31.34 m²
Total Sail Area (calculated):
63.51 m²
Sail Area (reported):
63.55 m²
I (Fore Triangle Height):
15.16 m
J (Fore Triangle Base):
4.24 m
P (Mainsail Hoist):
13.05 m
E (Boom Length):
4.80 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
39 HP
Fuel Capacity:
182 L
Water Capacity:
424 L
Performance Ratios
Hull Speed:
7.74 knots
SA/Displacement (Calculated):
17.03
SA/Displacement (Reported):
17.39
Ballast/Disp Ratio:
33.35%
Displacement/Length:
191.41
Comfort Ratio:
22.81
Capsize Screening:
2.07
S-Number:
2.86
Notes
Shallow draft: 4.25'
