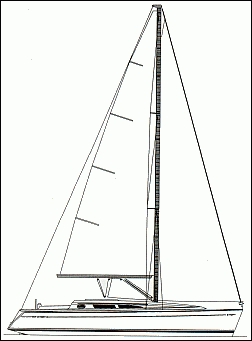

SUN ODYSSEY 40 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Daniel Andrieu
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1998
Last Built:
2004
Dimensions
Length Overall (LOA):
12.20 m
Length Waterline (LWL):
10.17 m
Beam:
3.95 m
Draft (Max):
1.95 m
Weight & Ballast
Displacement:
7,170 kg
Ballast:
2,400 kg
Ballast Type:
Cast iron
Sail Plan
Sail Area (reported):
83.10 m²
Engine & Systems
Engine Type:
Diesel
Engine Power:
60 HP
Fuel Capacity:
136 L
Water Capacity:
320 L
Performance Ratios
Hull Speed:
7.74 knots
SA/Displacement (Reported):
22.81
Ballast/Disp Ratio:
33.47%
Displacement/Length:
189.90
Comfort Ratio:
22.78
Capsize Screening:
2.07
Notes
Hull Length: 11.75m / 38.55ft.
