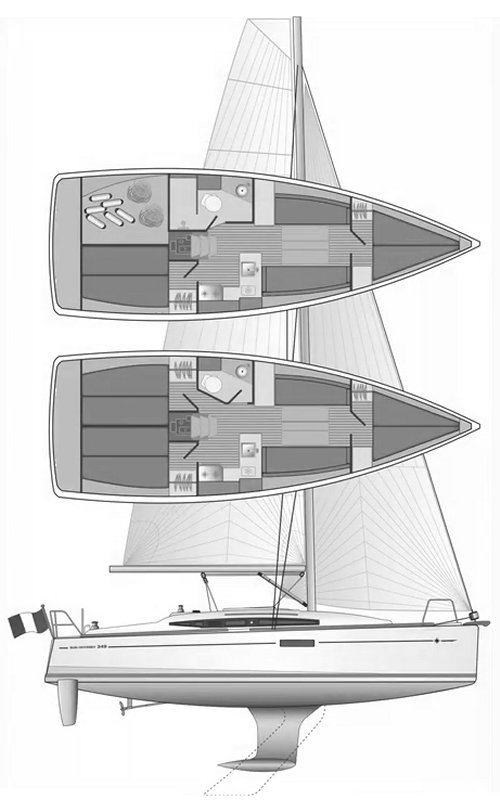

SUN ODYSSEY 349 (JEANNEAU)
Built by Jeanneau
• Designed by M. Lombard
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2014
Dimensions
Length Overall (LOA):
10.34 m
Length Waterline (LWL):
9.40 m
Beam:
3.44 m
Draft (Max):
1.98 m
Draft (Min):
1.49 m
Max Height:
15.42 m
Weight & Ballast
Displacement:
5,350 kg
Ballast:
1,580 kg
Sail Plan
Foresail Area:
25.04 m²
Mainsail Area:
25.74 m²
Total Sail Area (calculated):
50.78 m²
Sail Area (reported):
55.28 m²
I (Fore Triangle Height):
13.28 m
J (Fore Triangle Base):
3.77 m
P (Mainsail Hoist):
12.40 m
E (Boom Length):
4.15 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3YM20
Engine Power:
21 HP
Fuel Capacity:
129 L
Water Capacity:
204 L
Performance Ratios
Hull Speed:
7.44 knots
SA/Displacement (Calculated):
16.60
SA/Displacement (Reported):
18.44
Ballast/Disp Ratio:
29.53%
Displacement/Length:
179.52
Comfort Ratio:
22.74
Capsize Screening:
1.99
S-Number:
2.95
Notes
Hull length 9.97m
