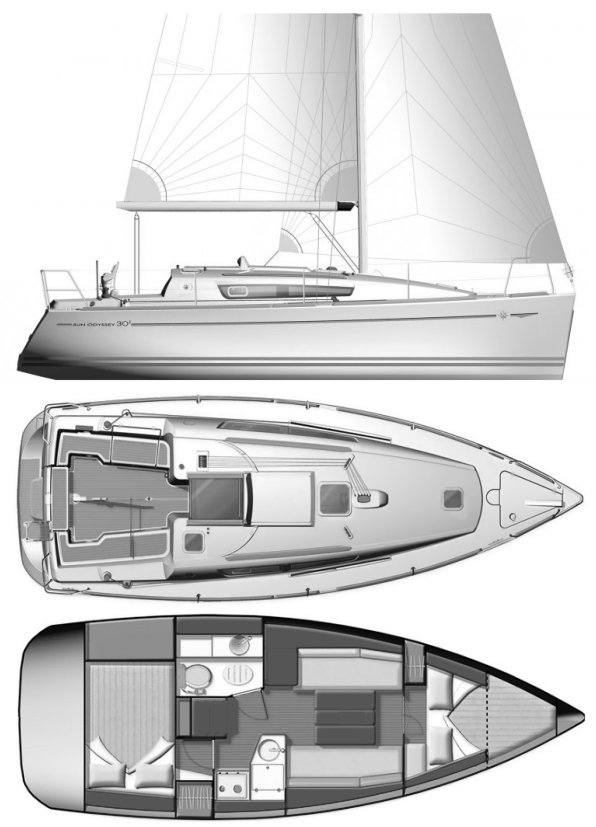

SUN ODYSSEY 30I (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Marc Lombard
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2008
Dimensions
Length Overall (LOA):
8.99 m
Length Waterline (LWL):
8.26 m
Beam:
3.18 m
Draft (Max):
1.75 m
Weight & Ballast
Displacement:
3,945 kg
Ballast:
946 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
18.88 m²
Mainsail Area:
19.76 m²
Total Sail Area (calculated):
38.64 m²
Sail Area (reported):
42.92 m²
I (Fore Triangle Height):
11.73 m
J (Fore Triangle Base):
3.22 m
P (Mainsail Hoist):
10.98 m
E (Boom Length):
3.60 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3YM20
Fuel Capacity:
49 L
Water Capacity:
159 L
Performance Ratios
Hull Speed:
6.98 knots
SA/Displacement (Calculated):
15.48
SA/Displacement (Reported):
17.54
Ballast/Disp Ratio:
23.99%
Displacement/Length:
195.08
Comfort Ratio:
21.27
Capsize Screening:
2.03
S-Number:
2.62
Notes
A 'beachable' keel/cb version also available.
