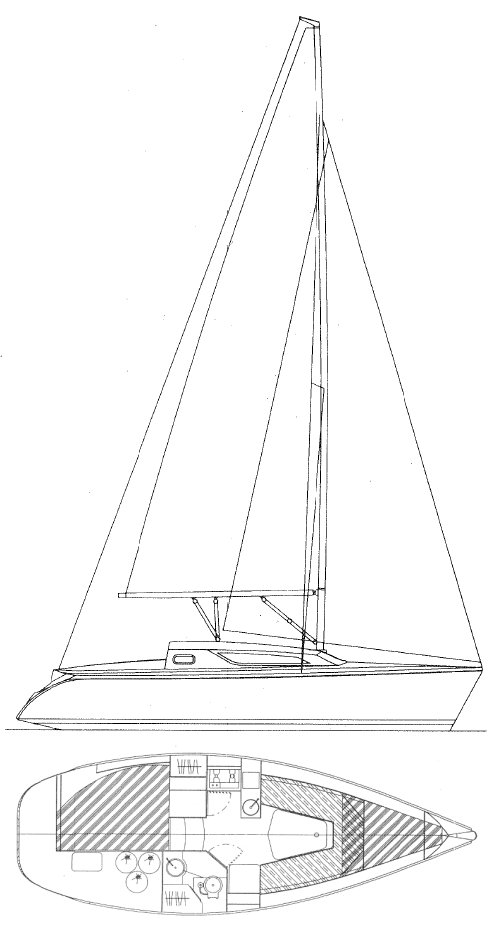

SUN ODYSSEY 28.1 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Tony Castro
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1994
Dimensions
Length Overall (LOA):
8.50 m
Length Waterline (LWL):
7.10 m
Beam:
3.00 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
2,600 kg
Ballast:
800 kg
Sail Plan
Foresail Area:
14.55 m²
Mainsail Area:
17.93 m²
Total Sail Area (calculated):
32.48 m²
Sail Area (reported):
32.52 m²
I (Fore Triangle Height):
10.10 m
J (Fore Triangle Base):
2.88 m
P (Mainsail Hoist):
10.25 m
E (Boom Length):
3.50 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
19 HP
Fuel Capacity:
26 L
Water Capacity:
98 L
Performance Ratios
Hull Speed:
6.47 knots
SA/Displacement (Calculated):
17.18
SA/Displacement (Reported):
17.54
Ballast/Disp Ratio:
30.77%
Displacement/Length:
202.56
Comfort Ratio:
17.08
Capsize Screening:
2.20
S-Number:
2.74
Notes
Originally called the SUN WAY 29. Keel/Centerboard model also available.
