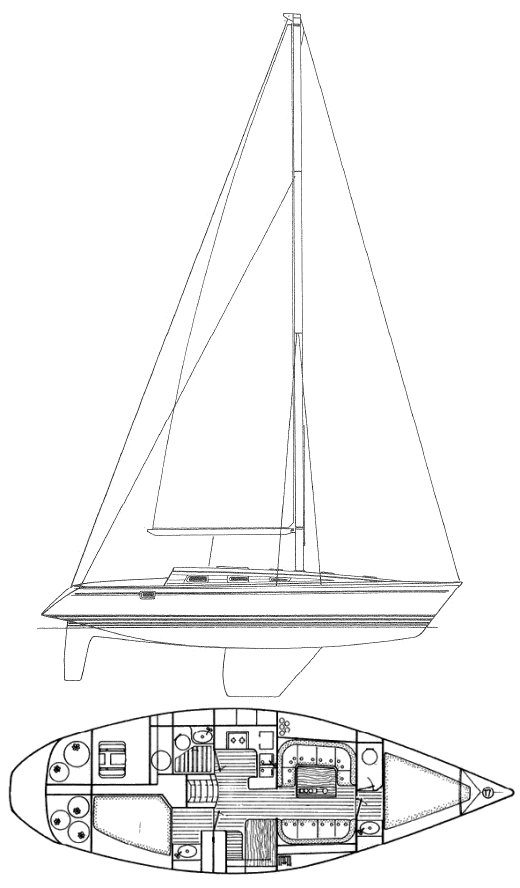

SUN LEGENDE 41 (JEANNEAU)
Built by Jeanneau
• Designed by Doug Peterson
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG w/kevlar (Aramat K)
First Built:
1984
Last Built:
1994
Number Built:
580
Dimensions
Length Overall (LOA):
12.44 m
Length Waterline (LWL):
9.98 m
Beam:
3.94 m
Draft (Max):
1.94 m
Weight & Ballast
Displacement:
7,300 kg
Ballast:
3,100 kg
Ballast Type:
Iron or lead
Sail Plan
Foresail Area:
36.79 m²
Mainsail Area:
30.32 m²
Total Sail Area (calculated):
67.11 m²
Sail Area (reported):
67.08 m²
I (Fore Triangle Height):
16.00 m
J (Fore Triangle Base):
4.60 m
P (Mainsail Hoist):
14.10 m
E (Boom Length):
4.30 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
50 HP
Fuel Capacity:
151 L
Water Capacity:
360 L
Performance Ratios
Hull Speed:
7.67 knots
SA/Displacement (Calculated):
17.83
SA/Displacement (Reported):
18.19
Ballast/Disp Ratio:
42.46%
Displacement/Length:
204.54
Comfort Ratio:
23.42
Capsize Screening:
2.05
S-Number:
2.79
Notes
Based on 'Legende', Jeanneau custom, 1 ton prototype.
