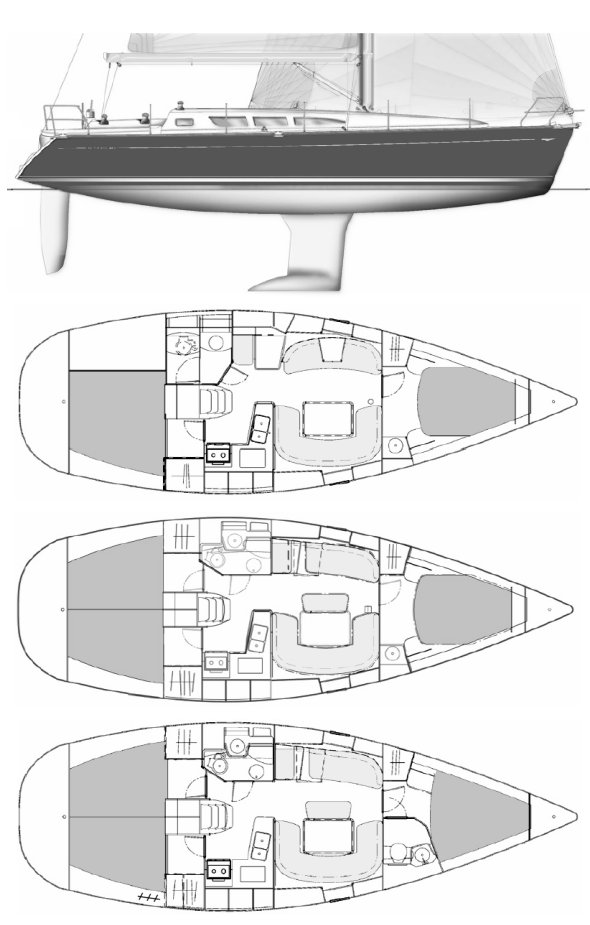

SUN FAST 40.3 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Daniel Andrieu
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2004
Dimensions
Length Overall (LOA):
12.20 m
Length Waterline (LWL):
10.17 m
Beam:
3.95 m
Draft (Max):
2.10 m
Weight & Ballast
Displacement:
8,190 kg
Ballast:
2,400 kg
Sail Plan
Foresail Area:
32.75 m²
Mainsail Area:
36.21 m²
Total Sail Area (calculated):
68.96 m²
Sail Area (reported):
68.93 m²
I (Fore Triangle Height):
15.53 m
J (Fore Triangle Base):
4.22 m
P (Mainsail Hoist):
14.20 m
E (Boom Length):
5.10 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
56 HP
Fuel Capacity:
136 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
7.74 knots
SA/Displacement (Calculated):
16.97
SA/Displacement (Reported):
17.31
Ballast/Disp Ratio:
29.30%
Displacement/Length:
216.92
Comfort Ratio:
26.02
Capsize Screening:
1.98
S-Number:
2.55
