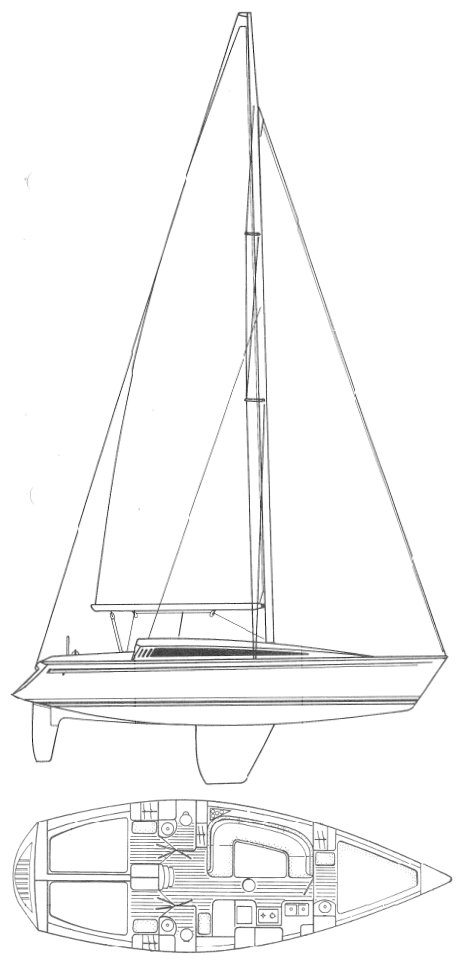

SUN FAST 39 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Jacques Fauroux
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1989
Dimensions
Length Overall (LOA):
11.87 m
Length Waterline (LWL):
9.87 m
Beam:
3.89 m
Draft (Max):
1.95 m
Weight & Ballast
Displacement:
6,500 kg
Ballast:
2,450 kg
Sail Plan
Foresail Area:
33.00 m²
Mainsail Area:
35.19 m²
Total Sail Area (calculated):
68.19 m²
Sail Area (reported):
68.19 m²
I (Fore Triangle Height):
14.60 m
J (Fore Triangle Base):
4.52 m
P (Mainsail Hoist):
15.30 m
E (Boom Length):
4.60 m
Engine & Systems
Fuel Capacity:
140 L
Water Capacity:
360 L
Performance Ratios
Hull Speed:
7.63 knots
SA/Displacement (Calculated):
19.58
SA/Displacement (Reported):
19.98
Ballast/Disp Ratio:
37.69%
Displacement/Length:
188.44
Comfort Ratio:
21.71
Capsize Screening:
2.11
S-Number:
3.20
Notes
The SUN FAST 39 is a more performance oriented version of the SUN CHARM 39, SUN ODYSSEY 39.
