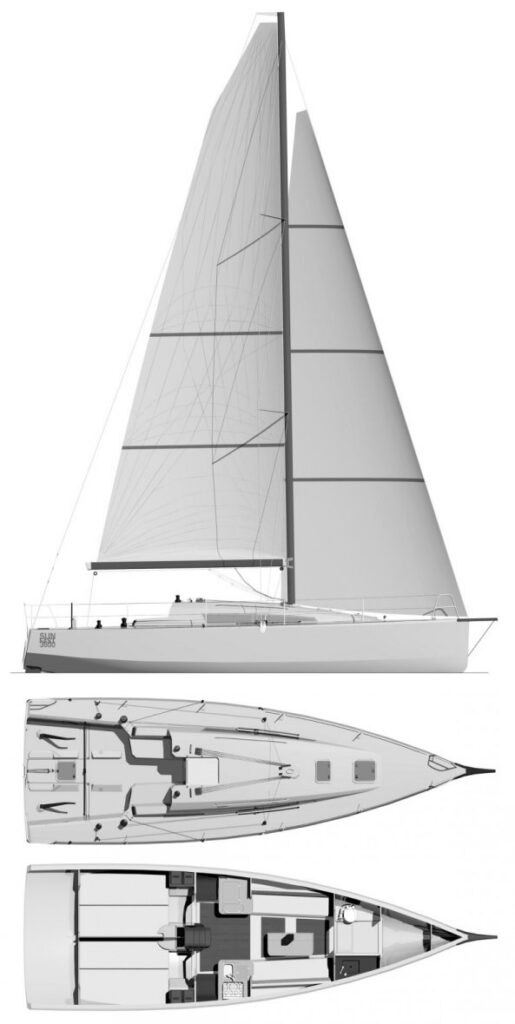

SUN FAST 3600 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Andrieu Yacht Design
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
Construction:
Vacuum-bagged resin infusion
First Built:
2012
Dimensions
Length Overall (LOA):
11.25 m
Length Waterline (LWL):
9.50 m
Beam:
3.55 m
Draft (Max):
2.13 m
Weight & Ballast
Displacement:
4,700 kg
Ballast:
2,000 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
29.40 m²
Mainsail Area:
31.02 m²
Total Sail Area (calculated):
60.42 m²
Sail Area (reported):
69.77 m²
I (Fore Triangle Height):
14.00 m
J (Fore Triangle Base):
4.20 m
P (Mainsail Hoist):
13.49 m
E (Boom Length):
4.60 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
21 HP
Fuel Capacity:
75 L
Water Capacity:
100 L
Performance Ratios
Hull Speed:
7.48 knots
SA/Displacement (Calculated):
21.53
SA/Displacement (Reported):
25.37
Ballast/Disp Ratio:
42.55%
Displacement/Length:
152.75
Comfort Ratio:
18.50
Capsize Screening:
2.14
S-Number:
3.99
Notes
LOD: 10.8 m / 35.42 ft
