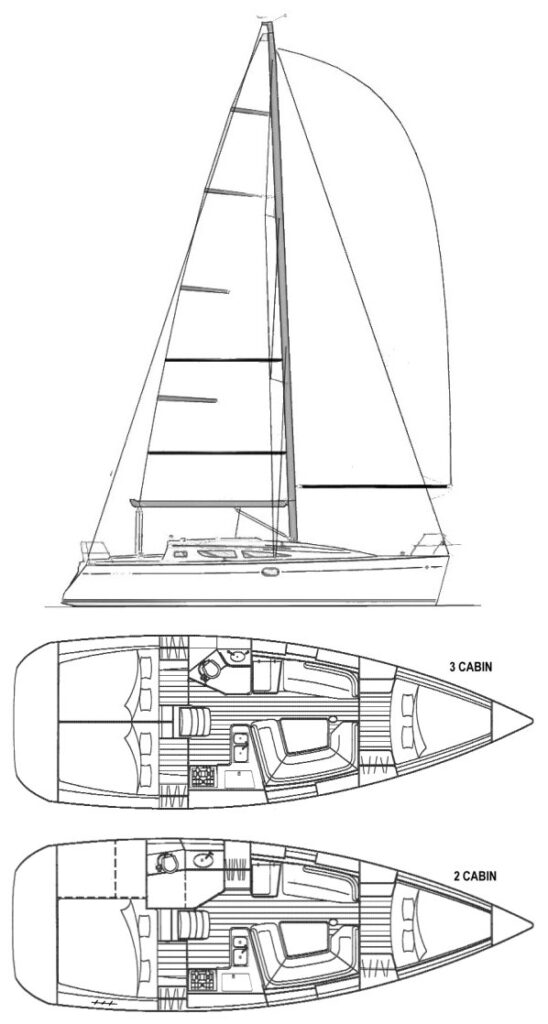

SUN FAST 35 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Marc Lombard
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2004
Dimensions
Length Overall (LOA):
10.75 m
Length Waterline (LWL):
9.74 m
Beam:
3.49 m
Draft (Max):
2.15 m
Weight & Ballast
Displacement:
5,535 kg
Ballast:
1,460 kg
Sail Plan
Foresail Area:
28.26 m²
Mainsail Area:
25.69 m²
Total Sail Area (calculated):
53.95 m²
Sail Area (reported):
68.10 m²
I (Fore Triangle Height):
13.95 m
J (Fore Triangle Base):
4.05 m
P (Mainsail Hoist):
12.85 m
E (Boom Length):
4.00 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
40 HP
Fuel Capacity:
130 L
Water Capacity:
310 L
Performance Ratios
Hull Speed:
7.57 knots
SA/Displacement (Calculated):
17.24
SA/Displacement (Reported):
22.21
Ballast/Disp Ratio:
26.38%
Displacement/Length:
167.02
Comfort Ratio:
22.26
Capsize Screening:
1.99
S-Number:
3.21
Notes
Reported SA includes main and genoa. Jib SA is reported at: 28.9 sqm / 311 sqft
