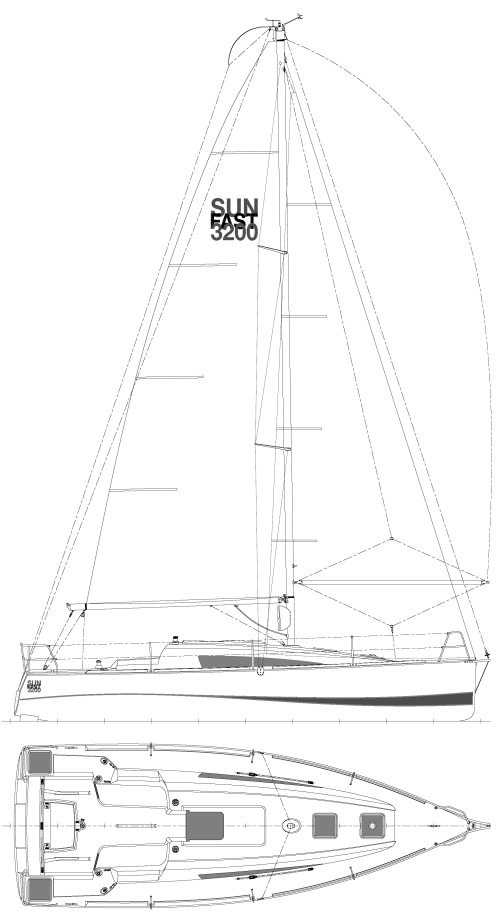

SUN FAST 3200 (JEANNEAU)
Built by Jeanneau
• Designed by Daniel Andrieu
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2008
Dimensions
Length Overall (LOA):
10.08 m
Length Waterline (LWL):
9.75 m
Beam:
3.48 m
Draft (Max):
1.88 m
Weight & Ballast
Displacement:
3,400 kg
Ballast:
1,300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
24.06 m²
Mainsail Area:
25.07 m²
Total Sail Area (calculated):
49.13 m²
Sail Area (reported):
49.15 m²
I (Fore Triangle Height):
12.50 m
J (Fore Triangle Base):
3.85 m
P (Mainsail Hoist):
11.80 m
E (Boom Length):
4.25 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
15 HP
Fuel Capacity:
76 L
Water Capacity:
79 L
Performance Ratios
Hull Speed:
7.58 knots
SA/Displacement (Calculated):
21.73
SA/Displacement (Reported):
22.17
Ballast/Disp Ratio:
38.23%
Displacement/Length:
102.12
Comfort Ratio:
13.99
Capsize Screening:
2.34
S-Number:
5.01
Notes
Dimensions from class rules.
