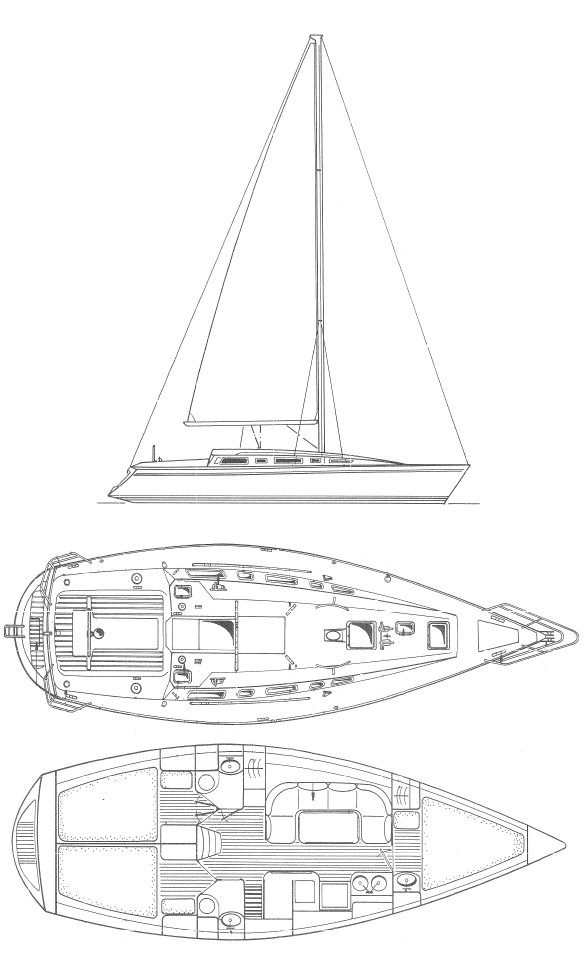

SUN CHARM 39 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Jacques Faroux
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Dimensions
Length Overall (LOA):
11.99 m
Length Waterline (LWL):
9.89 m
Beam:
3.89 m
Draft (Max):
1.96 m
Weight & Ballast
Displacement:
6,500 kg
Ballast:
2,450 kg
Sail Plan
Foresail Area:
35.19 m²
Mainsail Area:
28.56 m²
Total Sail Area (calculated):
63.75 m²
Sail Area (reported):
63.73 m²
I (Fore Triangle Height):
15.30 m
J (Fore Triangle Base):
4.60 m
P (Mainsail Hoist):
13.60 m
E (Boom Length):
4.20 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
50 HP
Fuel Capacity:
140 L
Water Capacity:
360 L
Performance Ratios
Hull Speed:
7.63 knots
SA/Displacement (Calculated):
18.30
SA/Displacement (Reported):
18.67
Ballast/Disp Ratio:
37.69%
Displacement/Length:
187.39
Comfort Ratio:
21.63
Capsize Screening:
2.10
S-Number:
3.06
Notes
Shoal Draft model: 4.67'.
