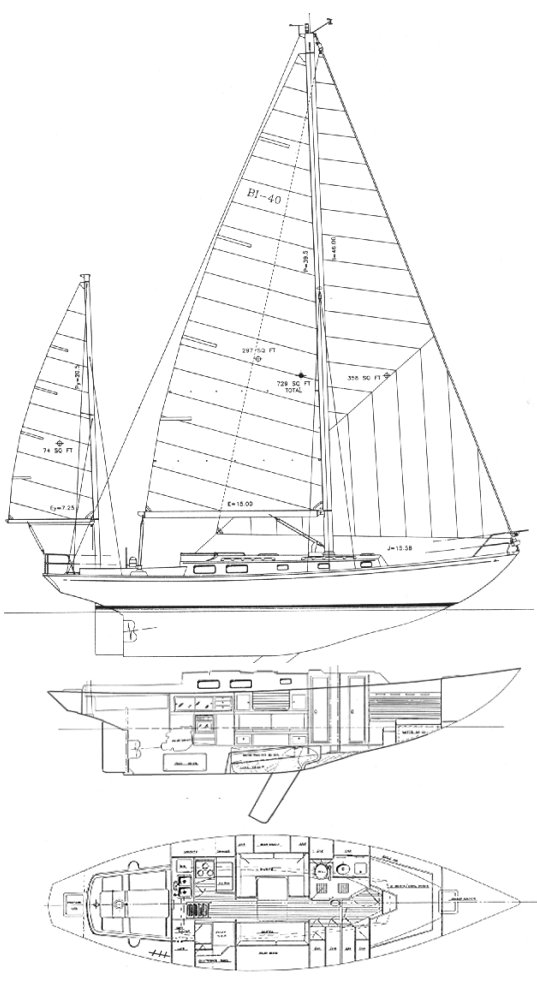

BLOCK ISLAND 40 (MIGRATOR)
Built by Migrator Yachts, Inc. (USA)
• Designed by William Tripp Jr.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
Construction:
FG
First Built:
1984
Dimensions
Length Overall (LOA):
12.42 m
Length Waterline (LWL):
8.53 m
Beam:
3.35 m
Draft (Max):
2.69 m
Draft (Min):
1.27 m
Max Height:
15.24 m
Weight & Ballast
Displacement:
9,072 kg
Ballast:
3,538 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
33.87 m²
Mainsail Area:
27.52 m²
Total Sail Area (calculated):
61.39 m²
Sail Area (reported):
68.38 m²
I (Fore Triangle Height):
14.26 m
J (Fore Triangle Base):
4.75 m
P (Mainsail Hoist):
12.04 m
E (Boom Length):
4.57 m
Engine & Systems
Engine Make:
Nanni
Engine Type:
Diesel
Engine Power:
42 HP
Fuel Capacity:
170 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
7.09 knots
SA/Displacement (Calculated):
14.11
SA/Displacement (Reported):
16.04
Ballast/Disp Ratio:
39.00%
Displacement/Length:
406.73
Comfort Ratio:
39.84
Capsize Screening:
1.62
S-Number:
0.96
Notes
The BLOCK ISLAND 40 was first introduced in 1957.
